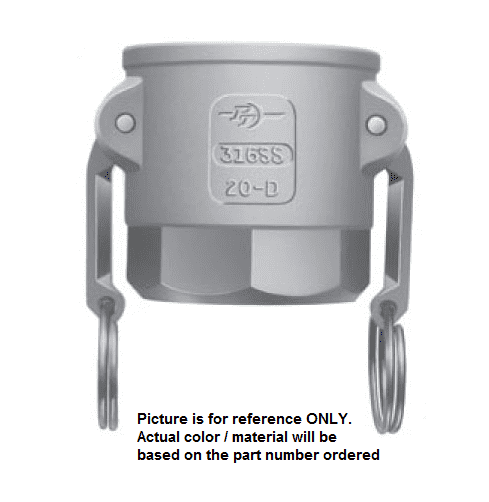

70391500 (15DFH) by PT-Coupling | 1-1/2" Coupler x 1-1/2" Female Fire Hose (NH) Thread | Hard Coat Aluminum | EPDM & Buna-N Seals

70391500 (15DFH) by PT-Coupling | 1-1/2" Coupler x 1-1/2" Female Fire Hose (NH) Thread | Hard Coat Aluminum | EPDM & Buna-N Seals

Save $9.30 Save $9.30
$83.70
$83.70 - $83.70
$83.70
$74.40
$74.40 - $74.40
$74.40
Specifications for Variant SKU: 70391500 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 1-1/2in Female Cam & Groove, 1-1/2in Female NST
Material(s): Hard Coat Aluminum
Seal Material(s): Buna-N/Nitrile

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Part DFH - Coupler x Female Fire Hose (NH) Thread - Hard Coat Aluminum
Features & Applications:
  • This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance.
  • Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products.
  • Comes standard with EPDM NH Thread Gasket and Buna-N cam gasket.
  • Made in the USA
This Fitting is also Available in the Following Materials:
Accessories:

Part
Name		 Item # Coupler
Size		 Female Fire Hose
Thread (NH)
Size		 O. D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
15DFH 70391500 1-1/2" 1-1/2" 7.16" 3.56" 2.80" 1.50" 250 PSI
25DFH 70392500 2-1/2" 2-1/2" 8.03" 4.43" 3.40" 2.38" 200 PSI
30DFH 70393000 3" 3" 9.56" 5.46" 3.50" 2.88" 200 PSI
30X25DFH 70393025 3" 2-1/2" 9.56" 5.46" 3.50" 2.88" 200 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
