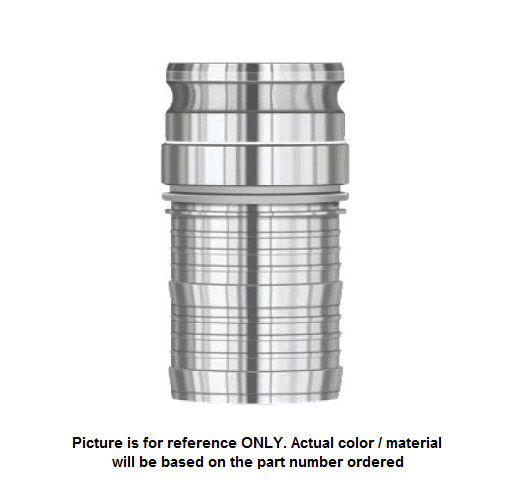

60251500 (15ESV) by PT-Coupling | 1-1/2" Swivel Adapter x 1-1/2" Hose Shank | Aluminum | Viton Seal

60251500 (15ESV) by PT-Coupling | 1-1/2" Swivel Adapter x 1-1/2" Hose Shank | Aluminum | Viton Seal

Save $13.29 Save $13.29
$119.61
$119.61 - $119.61
$119.61
$106.32
$106.32 - $106.32
$106.32
Specifications for Variant SKU: 60251500 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 1-1/2in Male Cam & Groove, 1-1/2in Hose Barb
Material(s): Aluminum
Seal Material(s): Viton
Special Properties: Swivel

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Standard Swivel Cam & Groove - Part ESV - 360° Swivel - Adapter x Hose Shank - Aluminum
Features & Applications:
  • Ball bearing swivel action.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA.
This Fitting is also Available in the Following Materials:
Accessories:

Part
Name		 Aluminum
Viton®
Item #		 Aluminum
Buna
Item #		 Adapter
Size		 Hose Shank
Size		 Outside
Diameter
(B)		 Overall
Length
(C)		 Max. Allowable
Working Press.
(PSI)*
15ESV 60251500 - 1-1/2" 1-1/2" 2.14" 5.10" 250 PSI
20ESV 60252000 - 2" 2" 2.64" 5.75" 250 PSI
25ESV 60252500 - 2-1/2" 2-1/2" 3.07" 6.63" 200 PSI
30ESV 60253000 - 3" 3" 3.70" 6.88" 200 PSI
40ESV 60254000 - 4" 4" 4.71" 7.20" 150 PSI
50ESV 60255000 - 5" 5" 6.56" 7.56" 75 PSI
60ESV 60256000 - 6" 6" 7.10" 10.10" 75 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
