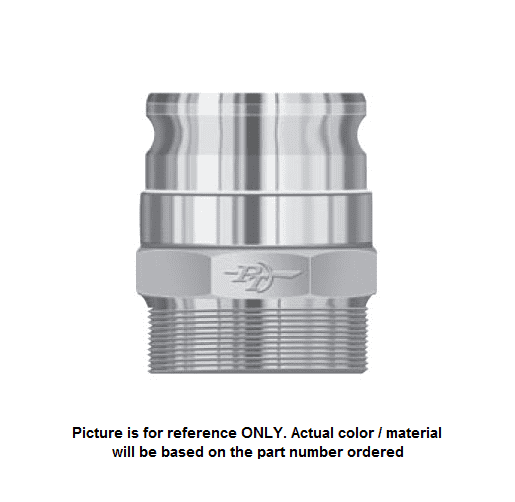

64171500 (15FSV) by PT-Coupling | 1-1/2" Swivel Adapter x 1-1/2" Male NPT | 316 Stainless Steel | Viton Seal

64171500 (15FSV) by PT-Coupling | 1-1/2" Swivel Adapter x 1-1/2" Male NPT | 316 Stainless Steel | Viton Seal

Save $34.06 Save $34.06
$306.55
$306.55 - $306.55
$306.55
$272.49
$272.49 - $272.49
$272.49
Specifications for Variant SKU: 64171500 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 1-1/2in Male Cam & Groove, 1-1/2in Male NPT
Material(s): 316 Stainless Steel
Seal Material(s): Viton
Special Properties: Swivel

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Standard Swivel Cam & Groove - Part FSV - 360° Swivel - Adapter x Male NPT Thread - 316 Stainless Steel
Features & Applications:
  • Ball bearing swivel action.
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA.
This Fitting is also Available in the Following Materials:
Accessories:

Part
Name		 316 Stainless Steel
Viton®
Item #		 316 Stainless Steel
Buna
Item #		 Adapter
Size		 Male NPT
Thread Size		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Across
Corners
(F)		 Chain Lug
Extension
(G)		 Max. Allowable
Working Press.
(PSI)*
15FSV 64171500 - 1-1/2" 1-1/2" 3.29" 2.31" 1.34" 2.44" 0.30" 250 PSI
20FSV 64172000 - 2" 2" 3.57" 2.57" 1.72" 2.84" 0.28" 250 PSI
30FSV 64173000 - 3" 3" 4.37" 2.87" 2.80" 4.07" 0.44" 200 PSI
40FSV 64174000 - 4" 4" 4.79" 3.19" 3.78" 5.27" 0.40" 150 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
