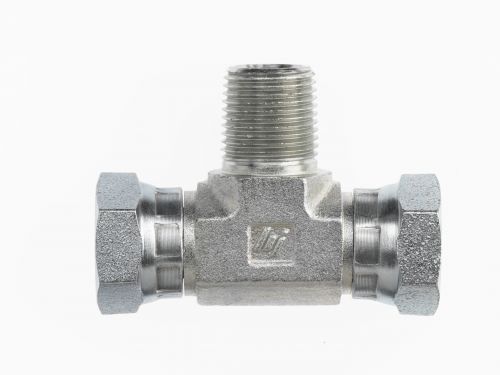

1601-12-12-12-FG by Brennan Inc. | -12 Male Pipe x -12 Female Pipe Swivel x -12 Female Pipe Swivel | Tee | Forged Steel

1601-12-12-12-FG by Brennan Inc. | -12 Male Pipe x -12 Female Pipe Swivel x -12 Female Pipe Swivel | Tee | Forged Steel

$13.34 - $13.34
$13.34
$16.92
$16.92 - $16.92
$16.92

Brennan Inc.
Tube Fittings & Adapters: 1601 - Male Pipe x Female Pipe Swivel x Female Pipe Swivel Tee
Specifications for Variant SKU: 1601-12-12-12-FG Brennan
Shape (Orientation): Tee
Ends Configuration: 3/4in Male NPTF, 3/4in Female NPSM, 3/4in Female NPSM, Some Ends Match
Material(s): Steel
Special Properties: Swivel
Part Number Material A1 NPTF A2 NPSM A3 NPSM A1 Drill A2 Drill A3 Drill L Length M1 Length M Length C Hex Y Flats
1601-02-02-02-FG Steel 1/8-27" 1/8-27" 1/8-27" 0.188" 0.120" 0.120" 0.720" 0.700" 0.840" 0.562" 0.438"
1601-04-04-04-FG Steel 1/4-18" 1/4-18" 1/4-18" 0.281" 0.220" 0.220" 1.090" 0.880" 1.070" 0.688" 0.562"
1601-04-06-06-FG Steel 1/4-18" 3/8-18" 3/8-18" 0.281" 0.340" 0.340" 1.220" 0.990" 1.200" 0.688" 0.750"
1601-06-04-04-FG Steel 3/8-18" 1/4-18" 1/4-18" 0.406" 0.220" 0.220" 1.220" 0.970" 1.160" 0.875" 0.750"
1601-06-06-06-FG Steel 3/8-18" 3/8-18" 3/8-18" 0.406" 0.340" 0.340" 1.220" 0.990" 1.200" 0.875" 0.750"
1601-08-04-04-FG Steel 1/2-14" 1/4-18" 1/4-18" 0.531" 0.210" 0.210" 1.470" 1.030" 1.210" 0.688" 0.875"
1601-08-06-06-FG Steel 1/2-14" 3/8-18" 3/8-18" 0.531" 0.340" 0.340" 1.470" 1.040" 1.250" 1.000" 0.875"
1601-08-08-08-FG Steel 1/2-14" 1/2-14" 1/2-14" 0.531" 0.460" 0.460" 1.470" 1.110" 1.390" 1.000" 0.875"
1601-08-12-12-FG Steel 1/2-14" 3/4-14" 3/4-14" 0.531" 0.620" 0.620" 1.590" 1.300" 1.650" 1.250" 1.062"
1601-12-08-08-FG Steel 3/4-14" 1/2-14" 1/2-14" 0.719" 0.460" 0.460" 1.590" 1.330" 1.610" 1.250" 1.062"
1601-12-12-12-FG Steel 3/4-14" 3/4-14" 3/4-14" 0.719" 0.620" 0.620" 1.590" 1.300" 1.650" 1.250" 1.062"
1601-16-16-16-FG Steel 1-11-1/2" 1-11-1/2" 1-11-1/2" 0.938" 0.800" 0.800" 1.970" 1.540" 1.890" 1.500" 1.312"
1601-20-20-20-FG Steel 1-1/4-11-1/2" 1-1/4-11-1/2" 1-1/4-11-1/2" 1.250" 1.020" 1.020" 2.380" 1.730" 2.150" 1.875" 1.625"
1601-24-24-24-FG Steel 1-1/2-11-1/2" 1-1/2-11-1/2" 1-1/2-11-1/2" 1.500" 1.250" 1.250" 2.640" 1.890" 2.310" 2.125" 1.875"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
