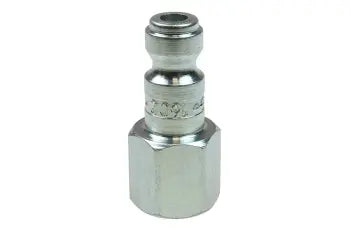

1605 by Coilhose | Coilflow™ Automotive Tru-Flate Interchange Connector | Manual | 1/4" Body Size | 3/8" Female NPT Thread | Straight | Plated Steel (Type 16)

Save $2.22 Save $2.22
Original price $5.55
Original price $5.55 - Original price $5.55
Original price $5.55
Current price $3.33
$3.33 - $3.33
Current price $3.33
Coilhose Pneumatics - Couplers & Connectors - Coilflow™ Couplers & Connectors - Manual - Industrial Interchange 1/4" Body Size (Type 16)
Specifications for Variant SKU: 1605 Coilhose
Brand: Coilflow
Shape (Orientation): Straight
Material(s): Plated Steel
Overview:
  • Manual couplers and connectors are engineered to interchange with the Automotive Tru-Flate interchange designs of other manufacturers.
  • Connectors are machined from steel, then plated to provide years of service. Steel connectors offer a harder sealing surface that is more resistance to dings and scratches.
Features:
  • Manual Couplers offer a durable connection with years of service.
  • Connector's plated steel construction contains sealing surface, even in adverse conditions.
  • Knurled body enhances grip.
  • Drag guard prevents accidental disconnection.
  • Made in USA
Body Size: 1/4" Type: Type 16
Interchange: Automotive Tru-Flate Style: Manual
Locking Device: 4 Stainless Balls Internal Valve: Zinc-Plated Steel
Body Material: Couplers: Brass
Connectors: Zinc-Plated Steel
Sleeve Material: Couplers: Brass
Connectors: Zinc-Plated Steel
Maximum Input Pressure: 300 PSI Temperature Range: -40°F to 250°F
Seals: Nitrile (Buna N)

Thread & Barb Size Part No.
Female
Part No.
Male
Part No.
Hose Barb
Coupler Connector Coupler Connector Coupler Connector Coupler Connector
1/8" - - 169* 1604 - - - -
1/4" 160 1602 162 1601 163 1606 163L 1606L
3/8" 161 1605 165 1603 166 1608 166L 1608L
