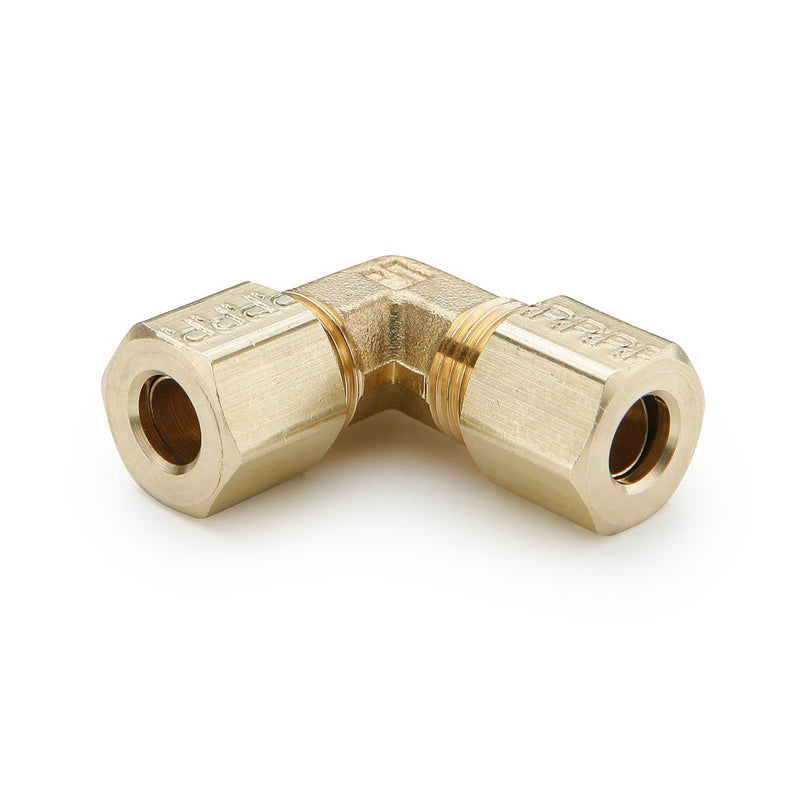

165C-2 by Parker | Compression Fitting | Union | 1/8" Tube Size x 5/16" Thread | 90° Elbow | Brass | Pack of 10

165C-2 by Parker | Compression Fitting | Union | 1/8" Tube Size x 5/16" Thread | 90° Elbow | Brass | Pack of 10

Save $10.71 Save $10.71
$117.78
$117.78 - $117.78
$117.78
$107.07
$107.07 - $107.07
$107.07

by Parker Hannifin
Compression Fittings:Union Elbow 165C

Package Quantity: 10 Units

Specifications for Variant SKU: 165C-2 Parker | 10 |
Series: 165C Series
Shape (Orientation): 90° Elbow
Material(s): Brass
Special Properties: UL Listed
Product Features:
  • Meets functional requirements of SAE J-512
  • UL Listed for flammable liquid
  • Brass or acetal sleeve available
  • No tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
Part Number Tube Size Straight Thread L M Flow Diameter (D)
165C-2 1/8" 5/16"-24 .82" .61" .094"
165C-3 3/16" 3/8"-24 .87" .61" .125
165C-4 1/4" 7/16"-24 .89" .62" .188"
165C-5 5/16" 1/2"-24 .95" .71" .250"
165C-6 3/8" 9/16"-24 1.03" .74" .312"
165C-7 7/16" 5/8"-24 1.16" .82" .312"
165C-8 1/2" 11/16"-20 1.34" .93" .406"
165C-10 5/8" 13/16"-18 1.48" 1.05" .500"
165C-12 3/4" 1"-18 1.65" 1.17" .563"
