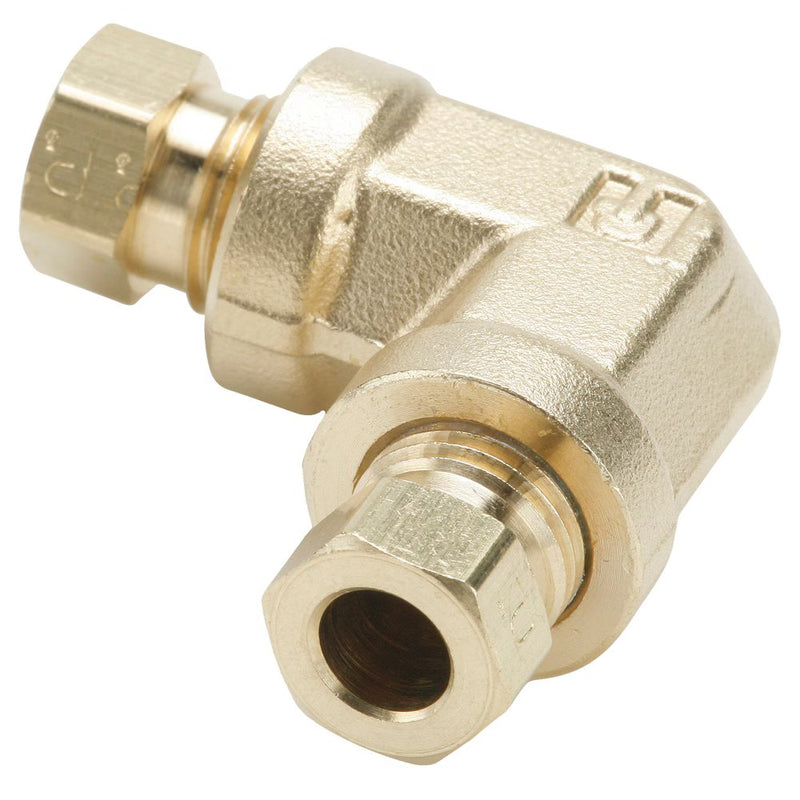

165HD-4 by Parker | Hi-Duty Fittings | Union | 1/4" Tube Size | Min. Orifice Size: .187" | 90° Elbow | Brass | Pack of 5

Save $66.00

$165.00

$165.00 - $165.00

$165.00

$99.00

$99.00 - $99.00

$99.00

by Parker Hannifin
Hi-Duty Flareless Tube Fittings:Union Elbow 165HD

Package Quantity: 5 Units

Quantity

Specifications for Variant SKU: 165HD-4 Parker \| 5 \|
Series:	165HD Series
Shape (Orientation):	90° Elbow
Material(s):	Brass
Special Properties:	Fuel Grade

Specification:
Product Features:	All brass construction Two piece fitting Higher pressure rating Easy assembly
Markets:	Mobile Industrial Compressors Lubrication
Applications:	Lubrication Lines Coolant Lines Oil Lines Engines
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	-65° to +250° F (-53.8° to +121.1° C)
Pressure Range:	See Chart Below

Compatible Tubing:	Copper Brass Seamless Steel Thermoplastic Tubing


Part Number	Tube Size	Minimum Orifice Size	A	B	Hex (C)
165HD-4	1/4"	.187"	1.084"	.690"	.552"
165HD-6	3/8"	.312"	1.376"	.970"	.615"
165HD-8	1/2"	.437"	1.546"	1.060"	.750"
