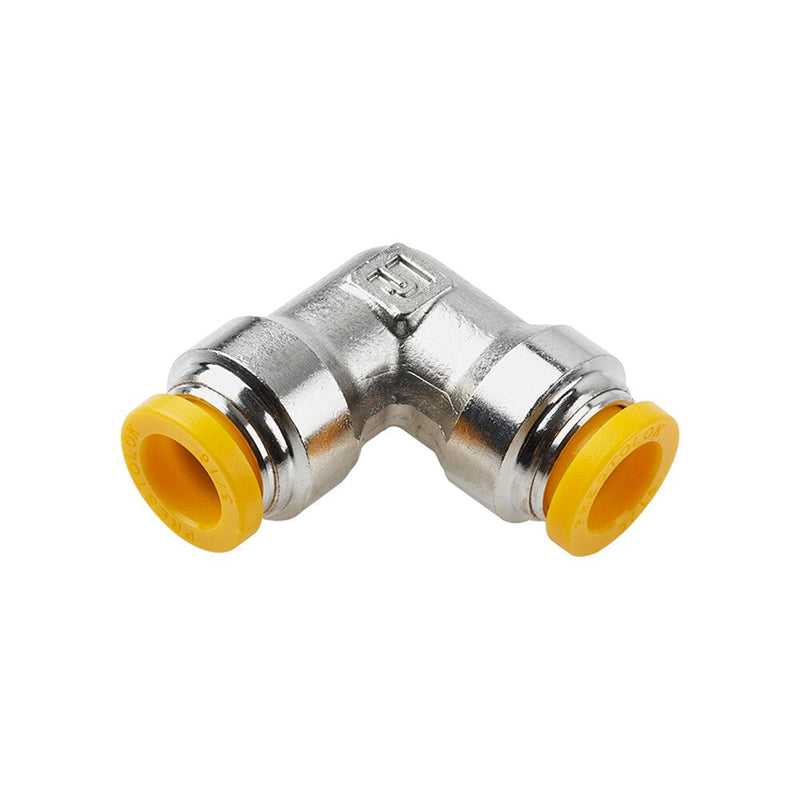

165PLP-8M by Parker | Prestolok PLP Push-to-Connect Fittings | Tube to Tube Fitting | 8mm Union Tube Size | 24.21mm Length | 6.350mm Flow Dia. | 90° Elbow | Nickel-Plated Brass | Pack of 10

165PLP-8M by Parker | Prestolok PLP Push-to-Connect Fittings | Tube to Tube Fitting | 8mm Union Tube Size | 24.21mm Length | 6.350mm Flow Dia. | 90° Elbow | Nickel-Plated Brass | Pack of 10

Save $8.74 Save $8.74
$96.18
$96.18 - $96.18
$96.18
$87.44
$87.44 - $87.44
$87.44

by Parker Hannifin
Push-to-Connect Fittings:165PLP Union Elbow – Metric

Package Quantity: 10 Units

Specifications for Variant SKU: 165PLP-8M Parker | 10 |
Series: 165PLP Series
Shape (Orientation): 90° Elbow
Material(s): Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Flame Resistant Release Button
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
Part Number Tube Size L Flow Diameter (D)
165PLP-4M 4 mm 19.05 mm 3.175 mm
165PLP-6M 6 mm 20.14 mm 4.775 mm
165PLP-8M 8 mm 23.75 mm 7.925 mm
165PLP-10M 10 mm 23.75 mm 7.925 mm
165PLP-12M 12 mm 27.13 mm 9.525 mm
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
