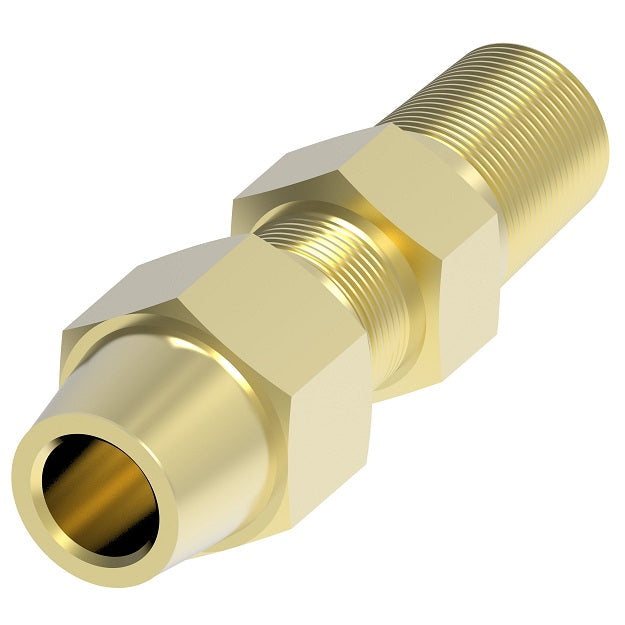

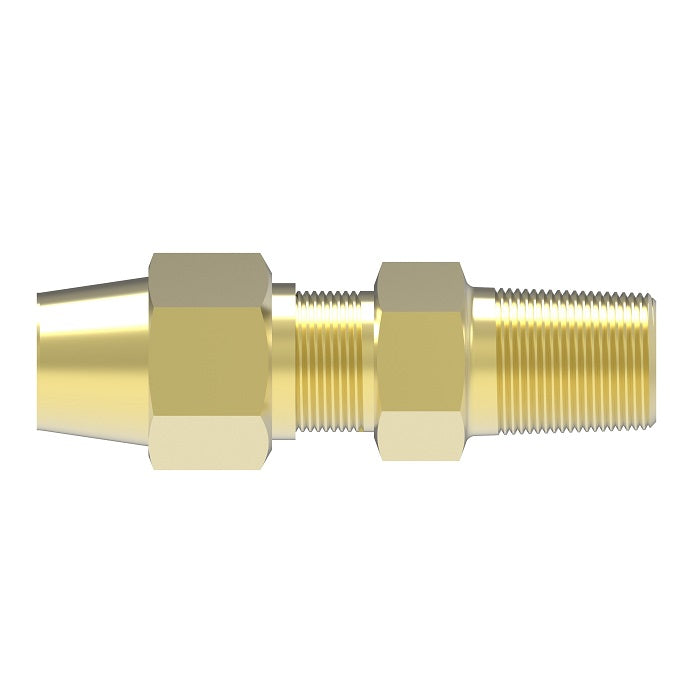

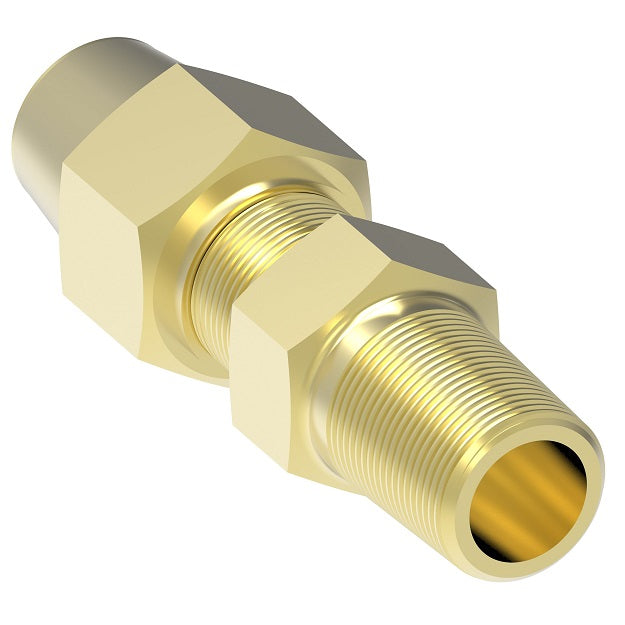

168X2 by Danfoss | Compression Fitting | Male Connector | Long Nut | 1/8" Tube OD x 1/8" Male NPTF | Brass

Original price $8.04 - Original price $8.04
Original price
$8.04
$8.04 - $8.04
Current price $8.04

Aeroquip® by Danfoss
Compression Fitting - Male Connector (with Long Nut)
Compression End x Male NPTF
Straight

Specifications for Variant SKU: 168X2 Danfoss
Ends Configuration: 1/8in Tube Compression, 1/8in Male NPTF
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Low cost.
  • No flaring.
  • Easy to assemble.
  • Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • 65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • Ref. SAE No. 060102BA
  • Meets specifications and standards of ASA, ASME and SAE.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/4-18
Brass
Part Number
Tube O.D. Male Pipe Thread
168X2 1/8" 1/8"
168X4 1/4" 1/8"
168X4X4 1/4" 1/4"
168X6 3/8" 1/4"
168X6X2 3/8" 1/8"
168X6X6 3/8" 3/8"
