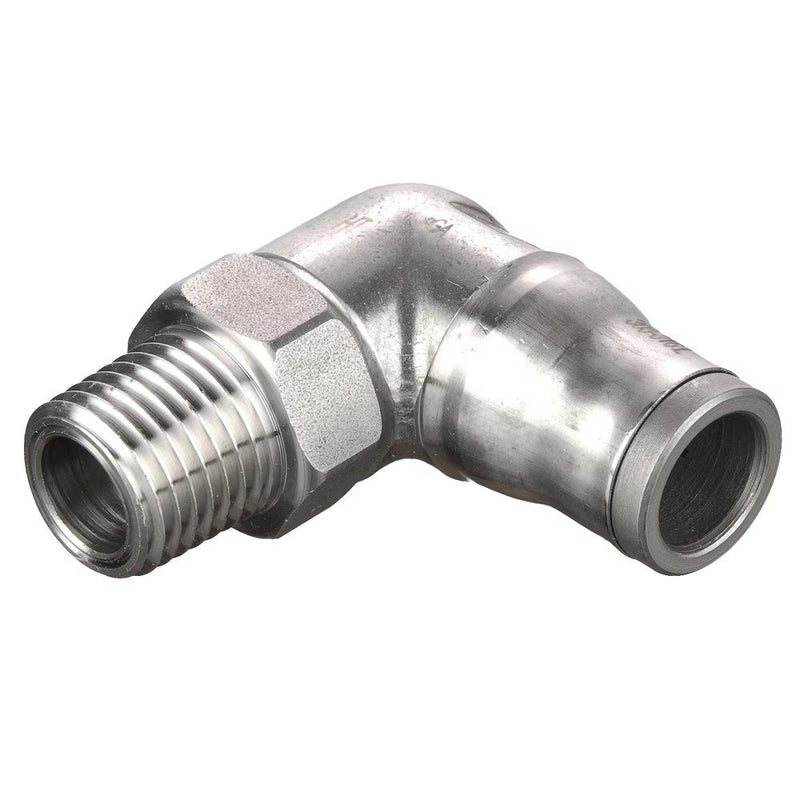

169PLS-4-2 by Parker | Prestolok PLS Push-to-Connect Fittings | Threaded Fitting | 1/4" Tube Size x 1/8" Male NPT Threads | 13 mm Height | 90° Elbow | Stainless Steel | Pack of 10

169PLS-4-2 by Parker | Prestolok PLS Push-to-Connect Fittings | Threaded Fitting | 1/4" Tube Size x 1/8" Male NPT Threads | 13 mm Height | 90° Elbow | Stainless Steel | Pack of 10

$622.84 - $622.84
$622.84
$797.07
$797.07 - $797.07
$797.07

by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:169PLS Male Elbow - Inch Tube to NPT, UNF

Package Quantity: 10 Units

Specifications for Variant SKU: 169PLS-4-2 Parker | 10 |
Series: 169PLS Series
Shape (Orientation): 90° Elbow
Material(s): Stainless Steel
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • Stainless steel 316L collet
  • Stainless steel 316L body
  • FKM seal
  • Stainless steel 316L backup washer
  • Chemical, corrosion, and abrasion resistance
  • Hygienic design reduces retention zones for
  • Easy cleaning
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Petrochemical
  • Life Science
  • Pulp and Paper
  • Food Processing
  • Wash Down
Compatible Media:
  • Food Fluids
  • Chemicals
  • Cleaning Agents
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLS
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyethylene
  • Polyurethane 95 Durometer Shore A
  • Stainless Steel (grooved)
  • Copper (grooved)
  • FEP
Part Number Tube Size NPT / UNF F H L
169PLS-4M-0 5/32" 10-32" 10 mm .98" .77"
169PLS-4-2 1/4" 1/8" 13 mm .85" .91"
169PLS-4-4 1/4" 1/4" 14 mm .85" .91"
169PLS-6-4 3/8" 1/4" 17 mm 1.12" 1.20"
169PLS-6-6 3/8" 3/8" 19 mm 1.12" 1.20"
169PLS-8-4 1/2" 1/4" 22 mm 1.34" 1.30"
169PLS-8-6 1/2" 3/8" 22 mm 1.34" 1.30"
169PLS-8-8 1/2" 1/2" 22 mm 1.34" 1.30"
