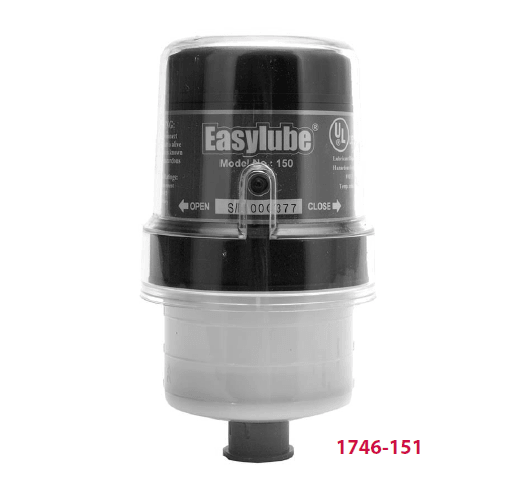

1746-151 by Alemite | Easylube Automatic Grease Lubricator | Capacity: 5 oz. (148 ml) | Connection Thread: 1/2" Male NPT | Pressure Rating: 75 PSI

1746-151 by Alemite | Easylube Automatic Grease Lubricator | Capacity: 5 oz. (148 ml) | Connection Thread: 1/2" Male NPT | Pressure Rating: 75 PSI

Save $1.75 Save $1.75
$164.98
$164.98 - $164.98
$164.98
$163.23
$163.23 - $163.23
$163.23

PRODUCT DESCRIPTION

Alemite Single Point Lubricators - Grease Lubricators - Easyasylube
Specifications for Variant SKU: 1746-151 Alemite
Applications:
  • Alemite's Easylube® Automatic Grease Lubricator is corrosion, dust and moisture resistant, and is easily adjustable to deliver controlled lubrication for up to 12 months.
Features:
  • Easily adjust dispensing time and volume - 1 to 12 months
  • Long life lithium battery pack (CR-P2 6V, 1300 mah)
  • Refillable reservoir can be used repeatedly
  • Warning light flashes to indicate low grease supply or grease blockage
  • Can be installed up to 15 feet from lubrication point, to serve hard to reach areas
  • UL rated for Class 1, Division 2, Groups B, C and D: Class II, Division 2, Groups F & G hazardous locations
  • Body's heat resistance 10° F - 194° F (-12° C - 90° C)
  • Dimensions: 6" x 3.3"
  • Connection Thread: 1/2" NPT(m)

Easylube Reference Table for Setting Dispensing Time and Volume
Time Setting Switch
(On)		 Daily
(24 hrs.)		 Weekly
(7 Days)		 Monthly
(30 Days)
1M 1 0.17 oz. 1.18 oz. 5.07 oz.
2M 2 0.08 oz. 0.59 oz. 2.54 oz.
3M 2+1 0.06 oz. 0.39 oz. 1.69 oz.
4M 4 0.04 oz 0.30 oz. 1.27 oz.
5M 4+1 0.03 oz. 0.24 oz. 1.01 oz.
6M 4+2 0.03 oz. 0.20 oz. 0.85 oz.
7M 4+ 2 +1 0.02 oz. 0.17 oz. 0.72 oz.
8M 8 0.02 oz. 0.15 oz. 0.63 oz.
9M 8+1 0.02 oz. 0.13 oz. 0.56 oz.
10M 8+2 0.02 oz. 0.12 oz. 0.51 oz.
11M 8+2+1 0.02 oz. 0.11 oz. 0.46 oz.
12M 8+4 0.01 oz. 0.10 oz. 0.42 oz.


Part Number Description Capacity Temperature range Spring Pressure Ratings
(PSI)		 Weight
1746-151 Easy Lube Automatic Lubricator 5 oz. (148 ml) -5° F to 140° F (-20° C to 60° C) NA 75 PSI 1.6 Lb.
1746-151X Easy Lube Automatic Lubricator (Pack of 10) 5 oz. (148 ml) -5° F to 140° F (-20° C to 60° C) NA 75 PSI 16.2 Lb.
