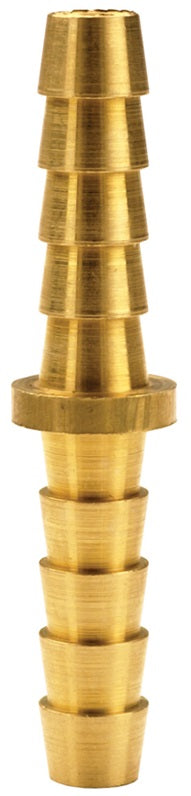

1780505C by Dixon Valve | Hose Mender / Splicer | 5/16" Hose ID x 5/16" Hose ID | Brass

1780505C by Dixon Valve | Hose Mender / Splicer | 5/16" Hose ID x 5/16" Hose ID | Brass

Save $0.14 Save $0.14
$1.65
$1.65 - $1.65
$1.65
$1.51
$1.51 - $1.51
$1.51

Dixon Valve
Hose Mender / Splicer | Hose Barb x Hose Barb
Specifications for Variant SKU: 1780505C Dixon
Series: 178 Series
Shape (Orientation): Straight
Ends Configuration: 5/16in Hose Barb, 5/16in Hose Barb, Some Ends Match
Material(s): Brass
Construction:
  • Brass
  • Lead-Free Brass: NSF®/ANSI 61 certified Lead-Free Brass <=0.25% lead, Alloy C2745
Safety Notes:
  • All standard hose fittings are intended for use with hose clamps or crimped ferrules.
Brass Lead-Free Brass
Part Number		 Hose I.D.
Previous
Part Number		 Part Number
BM1 1780202C - 1/8" x 1/8"
BM15 1780303C - 3/16" x 3/16"
BM2-1 1780402C - 1/4" x 1/8"
BM2 1780404C 1780404CLF 1/4" x 1/4"
BM25 1780505C - 5/16" x 5/16"
BM3-2 1780604C - 3/8" x 1/4"
BM3 1780606C 1780606CLF 3/8" x 3/8"
- 1780804C - 1/2 x 1/4"
BM4-3 1780806C - 1/2" x 3/8"
BM4 1780808C 1780808CLF 1/2" x 1/2"
BM5-3 1781006C - 5/8" x 3/8"
BM5-4 1781008C - 5/8" x 1/2"
BM5 1781010C - 5/8" x 5/8"
BM6-4 1781208C - 3/4" x 1/2"
BM6 1781212C - 3/4" x 3/4"
- 1781612C - 1" x 3/4"
BM8 1781616C - 1" x 1"
