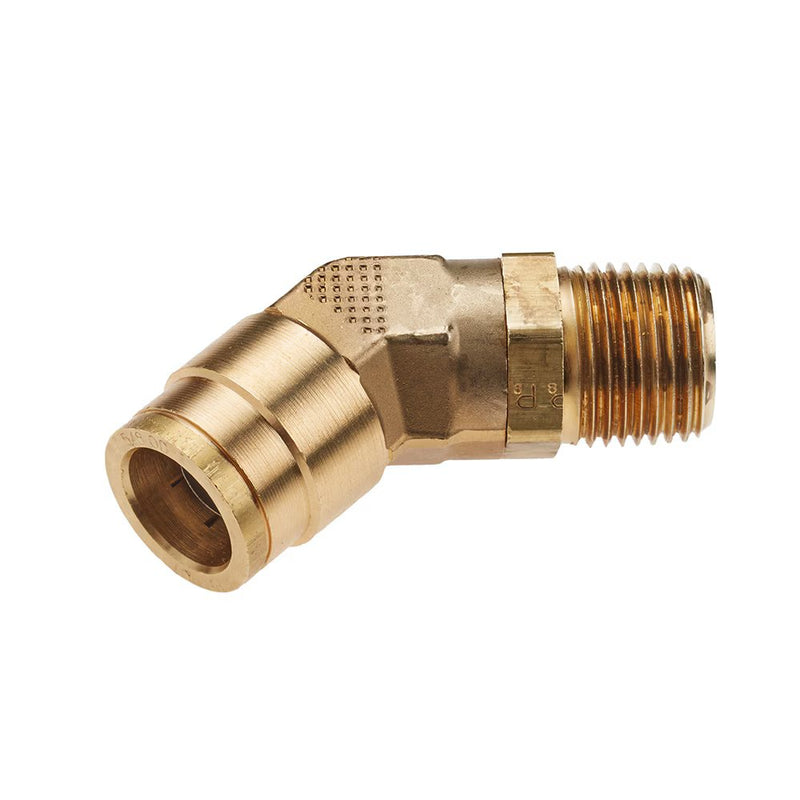

179PTC-10-8 by Parker | Threaded Fitting | 5/8" Swivel Push-to-Connect x 1/2" Male NPT Thread | 45° Elbow | Brass

179PTC-10-8 by Parker | Threaded Fitting | 5/8" Swivel Push-to-Connect x 1/2" Male NPT Thread | 45° Elbow | Brass

Save $3.53 Save $3.53
$43.25
$43.25 - $43.25
$43.25
$39.72
$39.72 - $39.72
$39.72

by Parker Hannifin
PTC Brass Fittings:Male Elbow Swivel 45° 179PTC
Specifications for Variant SKU: 179PTC-10-8 Parker
Series: 179PTC Series
Shape (Orientation): 45° Elbow
Material(s): Brass, Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Product Features:
  • Brass Collet
  • Buna N O-ring
  • Stainless Steel Tube Support
  • Meets D.O.T. FMVSS571.106
  • Meets SAE J2494-3
  • Meets SAE J2494 & SAE J2494-3
Markets:
  • Heavy Duty Truck
  • Trailer
  • Mobile
Applications:
  • Air Brakes
  • Air Tanks
  • Air Ride
  • Sliders
  • Tire Inflation
  • Primary & Secondary Air Lines
Specification:
Pressure Range: Up to 250 PSI (17.2 bar)
Temperature Range: -50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16" & 5/32 only): -40 to +200F (-40 to +93.3C)
Compatible Tubing:
  • SAE J844 Type A & B nylon tubing
Part Number Tube Size Pipe Thread L N Hex Wrench Flats
179PTC-4-2 1/4" 1/8" .76" .93" 9/16" 9/16"
179PTC-4-4 1/4" 1/4" .76" 1.15" 9/16" 9/16"
179PTC-6-2 3/8" 1/8" .95" 1.05" 11/16" 3/4"
179PTC-6-4 3/8" 1/4" .95" 1.17" 11/16" 3/4"
179PTC-6-6 3/8" 3/8" .95" 1.20" 11/16" 3/4"
179PTC-8-4 1/2" 1/4" 1.15" 1.70" 13/16" 13/16"
179PTC-8-6 1/2" 3/8" 1.15" 1.78" 13/16" 13/16"
179PTC-8-8 1/2" 1/2" 1.15" 1.93" 7/8" 9/16"
179PTC-10-8 5/8" 1/2" N/A N/A N/A N/A
