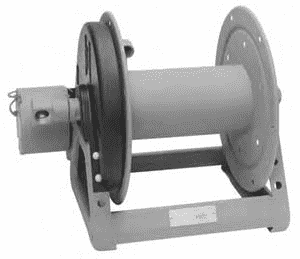

1800 Hannay Electric Powered Rewind Reel (E-1826-17-18) 12 Volt DC

E1826-17-18 by Hannay | #23-26 | 1800 Series | Electric Powered Rewind Reel | 12 Volt DC

Save $643.31 Save $643.31
$1,608.28
$1,608.28 - $1,608.28
$1,608.28
$964.97
$964.97 - $964.97
$964.97



1800 Electric Powered Rewind Reels To handle single 5/8" or 3/4" I.D. hose.
Specifications for Variant SKU: E1826-17-18 Hannay
Series: 1800 Series
Applications:
  • Air Compressors
  • Washdown
Features:
  • Lightweight compact reels designed for long lengths of hose in manual power rewind.
  • Direct crank rewind is permanently attached.
  • Chain and sprocket drive powered by an Electric motor
  • Standard inlet 90 deg. ball bearing swivel joint 1" female NPT threads.
  • Standard outlet 3/4" female NPT threads.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -40 deg. F to +250 deg. F (-40 deg. C to +121 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 5/8" 3/4"
O.D. (in) 1" 1-9/32" A B E Crank E Power F Crank F Power X
E-1816-17-18 75' length 50' length 46 lbs. 13" 7" 16.5" 19" 23.38" 18.5" 11.5"
E-1822-17-18 150' length 100' length 48 lbs. 19" 14" 16.5" 19" 29.38" 24.5" 17.5"
E-1826-17-18 200' length 125' length 50 lbs. 23" 18" 16.5" 19" 33.38" 28.5" 21.5"
E-1830-17-18 275' length 150' length 51 lbs. 27" 22" 16.5" 19" 37.38" 32.5" 25.5"
E-1836-17-18 350' length 200' length 54 lbs. 33" 28" 16.5" 19" 43.38" 38.5" 31.5"

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
