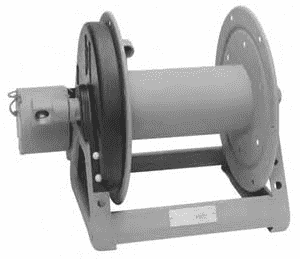

1800 Hannay Electric Powered Rewind Reel (E-1836-17-18) 12 Volt DC

E1836-17-18 by Hannay | #23-36 | 1800 Series | Electric Powered Rewind Reel | 12 Volt DC

Save $61.70 Save $61.70
$1,026.67
$1,026.67 - $1,026.67
$1,026.67
$964.97
$964.97 - $964.97
$964.97



1800 Electric Powered Rewind Reels To handle single 5/8" or 3/4" I.D. hose.
Specifications for Variant SKU: E1836-17-18 Hannay
Series: 1800 Series
Applications:
  • Air Compressors
  • Washdown
Features:
  • Lightweight compact reels designed for long lengths of hose in manual power rewind.
  • Direct crank rewind is permanently attached.
  • Chain and sprocket drive powered by an Electric motor
  • Standard inlet 90 deg. ball bearing swivel joint 1" female NPT threads.
  • Standard outlet 3/4" female NPT threads.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -40 deg. F to +250 deg. F (-40 deg. C to +121 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 5/8" 3/4"
O.D. (in) 1" 1-9/32" A B E Crank E Power F Crank F Power X
E-1816-17-18 75' length 50' length 46 lbs. 13" 7" 16.5" 19" 23.38" 18.5" 11.5"
E-1822-17-18 150' length 100' length 48 lbs. 19" 14" 16.5" 19" 29.38" 24.5" 17.5"
E-1826-17-18 200' length 125' length 50 lbs. 23" 18" 16.5" 19" 33.38" 28.5" 21.5"
E-1830-17-18 275' length 150' length 51 lbs. 27" 22" 16.5" 19" 37.38" 32.5" 25.5"
E-1836-17-18 350' length 200' length 54 lbs. 33" 28" 16.5" 19" 43.38" 38.5" 31.5"
