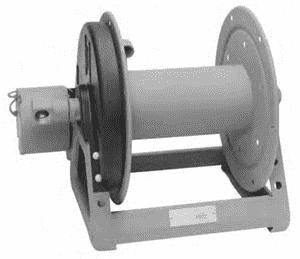

1800 Hannay Hydraulic Powered Rewind Reel (HD-1826-17-18)

HD-1826-17-18 by Hannay | 1800 Series | Hydraulic Powered Rewind Reel

Save $728.65 Save $728.65
$1,821.63
$1,821.63 - $1,821.63
$1,821.63
$1,092.98
$1,092.98 - $1,092.98
$1,092.98



1800 Hydraulic Powered Rewind Reels To handle single 5/8" or 3/4" I.D. hose.
Specifications for Variant SKU: HD-1826-17-18 Hannay
Series: 1800 Series
Applications:
  • Air Compressors
  • Washdown
Features:
  • Lightweight compact reels designed for long lengths of hose in manual power rewind.
  • Direct crank rewind is permanently attached.
  • Chain and sprocket drive powered by a Hydraulic motor
  • Standard inlet 90 deg. ball bearing swivel joint 1" female NPT threads.
  • Standard outlet 3/4" female NPT threads.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -40 deg. F to +250 deg. F (-40 deg. C to +121 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 5/8" 3/4"
O.D. (in) 1" 1-9/32" A B E Crank E Power F Crank F Power X
HD-1816-17-18 75' length 50' length 43 lbs. 13" 7" 16.5" 19" 23.38" 18.5" 11.5"
HD-1822-17-18 150' length 100' length 45 lbs. 19" 14" 16.5" 19" 29.38" 24.5" 17.5"
HD-1826-17-18 200' length 125' length 47 lbs. 23" 18" 16.5" 19" 33.38" 28.5" 21.5"
HD-1830-17-18 275' length 150' length 48 lbs. 27" 22" 16.5" 19" 37.38" 32.5" 25.5"
HD-1836-17-18 350' length 200' length 51 lbs. 33" 28" 16.5" 19" 43.38" 38.5" 31.5"
