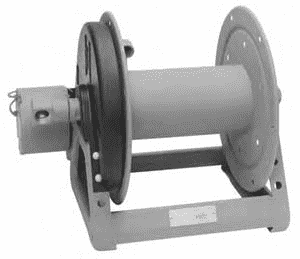

1800 Hannay Hydraulic Powered Rewind Reel (HD-1830-17-18)

HD-1830-17-18 by Hannay | 1800 Series | Hydraulic Powered Rewind Reel

Save $23.86 Save $23.86
$985.19
$985.19 - $985.19
$985.19
$961.33
$961.33 - $961.33
$961.33



1800 Hydraulic Powered Rewind Reels To handle single 5/8" or 3/4" I.D. hose.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: HD-1830-17-18 Hannay
Series: 1800 Series
Applications:
  • Air Compressors
  • Washdown
Features:
  • Lightweight compact reels designed for long lengths of hose in manual power rewind.
  • Direct crank rewind is permanently attached.
  • Chain and sprocket drive powered by a Hydraulic motor
  • Standard inlet 90 deg. ball bearing swivel joint 1" female NPT threads.
  • Standard outlet 3/4" female NPT threads.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -40 deg. F to +250 deg. F (-40 deg. C to +121 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 5/8" 3/4"
O.D. (in) 1" 1-9/32" A B E Crank E Power F Crank F Power X
HD-1816-17-18 75' length 50' length 43 lbs. 13" 7" 16.5" 19" 23.38" 18.5" 11.5"
HD-1822-17-18 150' length 100' length 45 lbs. 19" 14" 16.5" 19" 29.38" 24.5" 17.5"
HD-1826-17-18 200' length 125' length 47 lbs. 23" 18" 16.5" 19" 33.38" 28.5" 21.5"
HD-1830-17-18 275' length 150' length 48 lbs. 27" 22" 16.5" 19" 37.38" 32.5" 25.5"
HD-1836-17-18 350' length 200' length 51 lbs. 33" 28" 16.5" 19" 43.38" 38.5" 31.5"
Hannay Reels

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
