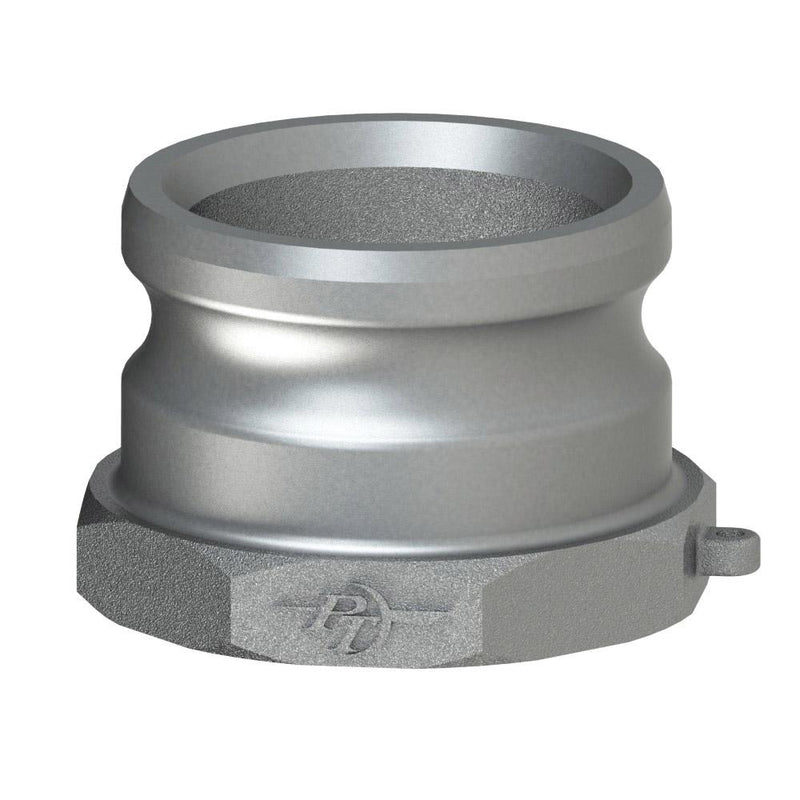

1800140 (40A) by PT-Coupling | Cam & Groove Adapter | Type A | 4" Adapter x 4" Female NPT | Ductile Iron

Name: 1800140 (40A) by PT-Coupling | Cam & Groove Adapter | Type A | 4" Adapter x 4" Female NPT | Ductile Iron
Brand: PT-Coupling
SKU: 1800140 PT-Coupling
Price: 47.72 USD
Availability: InStock

Save $31.81

$79.53

$79.53 - $79.53

$79.53

$47.72

$47.72 - $47.72

$47.72

PT Coupling
Cam and Groove (Camlock) Adapter | Type A | Adapter x Female NPT Thread | Ductile Iron

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 1800140 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Type A
Ends Configuration:	4in Male Cam & Groove, 4in Female NPT
Material(s):	Ductile Iron

Overview:
PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
Excellent abrasion and wear resistance. Good strength and toughness characteristics. Ideal for use with sand, grout, cement, and other abrasives. Made in the USA


Part Name	Item #	Adapter Size	Thread (Female NPT)	Overall Length (C)	Inside Diameter (E)	Across Corners (F)	Chain Lug Extension (G)	Engagement Length	Max. Allowable Working Press. (PSI)*	Weight
07A	1800107	3/4"	3/4"	1.62"	0.75"	1.49"	-	0.97"	250 PSI	0.27 lbs.
10A	1800110	1"	1"	1.91"	0.88"	1.76"	0.34	1.19"	250 PSI	0.475 lbs.
12A	1800112	1-1/4"	1-1/4"	2.16"	1.04"	2.19"	0.34"	1.44"	250 PSI	0.67 lbs.
15A	1800115	1-1/2"	1-1/2"	2.29"	1.35"	2.44"	0.33"	1.48"	250 PSI	0.845 lbs.
20A	1800120	2"	2"	2.54"	1.72"	2.92"	0.31"	1.75"	250 PSI	1.165 lbs.
25A	1800125	2-1/2"	2-1/2"	2.75"	2.14"	3.49"	0.27"	1.75"	200 PSI	0.75 lbs.
30A	1800130	3"	3"	2.84"	2.80"	4.22"	0.44"	1.84"	200 PSI	2.13 lbs.
40A	1800140	4"	4"	3.16"	3.78"	5.41"	0.39"	1.87"	150 PSI	3.77 lbs.
50A	1800150	5"	5"	3.22"	4.79"	6.49"	0.35"	1.97"	75 PSI	4.976 lbs.
60A	1800160	6"	6"	3.35"	5.90"	7.70"	0.60"	2.19"	75 PSI	6.975 lbs.
80A	1800180	8"	8"	4.50"	7.80"	10.23"	0.60"	2.15"	50 PSI	15.365 lbs.

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
