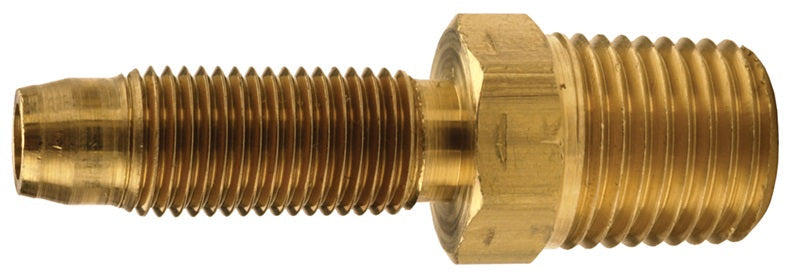

1820406S by Dixon Valve | Reusable Fitting | Male Stem | 1/4" Hose ID x 3/8" Male NPTF | Brass

1820406S by Dixon Valve | Reusable Fitting | Male Stem | 1/4" Hose ID x 3/8" Male NPTF | Brass

Save $0.57 Save $0.57
$7.57
$7.57 - $7.57
$7.57
$7.00
$7.00 - $7.00
$7.00

Dixon Valve
Reusable Fitting | Male Stem

Reusable fittings are recommended for low pressure air hose applications.
Specifications for Variant SKU: 1820406S Dixon
Series: 182 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Reusable Hose End, 3/8in Male NPTF
Material(s): Brass
Features:
  • Durable, easily repaired hose connection.
  • Caution: check hose O.D. and I.D. accurately before ordering.
  • Recommended for use with rubber covered hose only.
  • All re-usable fittings are of heavy duty construction.
  • Reusable fittings offer a more durable hose connection and are easily repaired.
Specifications:
  • Maximum working pressure: 250 PSI at ambient temperature 70°F (21°C).
Safety Notes:
  • Except as specifically noted as to a specific fitting, NO hose fittings manufactured and/or sold by any Dixon® company can be safely used in life dependency applications such as diving, for oxygen, air, or other breathing applications. Dixon fittings are NOT designed and NOT recommended for such use and should NOT BE USED for that purpose. Use of non-approved hose fittings in such applications can result in death or grave personal injuries.
Installation:
  • Simply slip and twist ferrule on end of hose which has been trimmed flush. No skiving necessary.
  • Apply a drop or two of lubricant to fitting before inserting ferrule.
  • Turn reusable fitting into ferrule. Hose is expanded inside ferrule for perfect fit.
Brass
Part Number		 303 Stainless Steel*
Part Number		 Hose ID Male NPTF Thread
(Stainless Steel Parts have NPT Threads)
1820402S - 1/4" 1/8"
1820404S 1820404SS 1/4" 1/4"
1820406S - 1/4" 3/8"
1820504S - 5/16" 1/4"
1820506S - 5/16" 3/8"
1820604S 1820604SS 3/8" 1/4"
1820606S 1820606SS 3/8" 3/8"
1820608S - 3/8" 1/2"
1820804S - 1/2" 1/4"
1820806S - 1/2" 3/8"
1820808S 1820808SS 1/2" 1/2"

* Stainless steel parts have NPT threads
