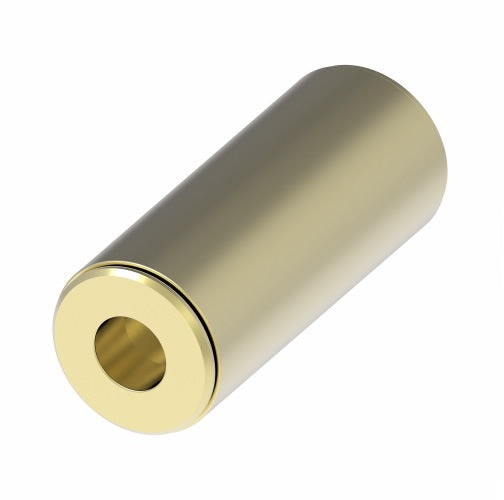

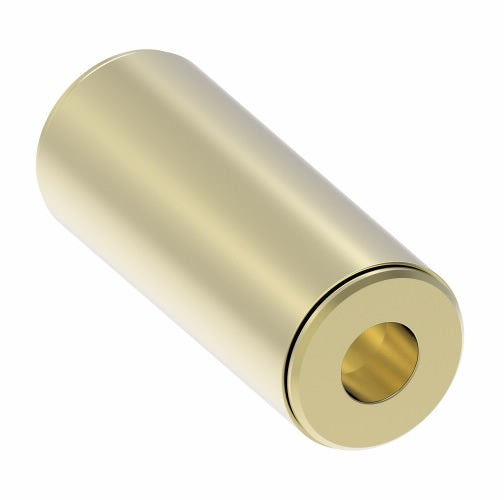

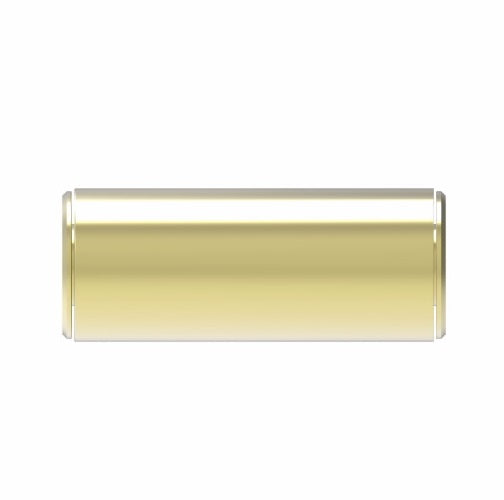

1862X10 by Danfoss | Quick Connect Air Brake Adapter | Union | 5/8" Tube OD x 5/8" Tube OD | Brass

1862X10 by Danfoss | Quick Connect Air Brake Adapter | Union | 5/8" Tube OD x 5/8" Tube OD | Brass

Name: 1862X10 by Danfoss | Quick Connect Air Brake Adapter | Union | 5/8" Tube OD x 5/8" Tube OD | Brass
Brand: Danfoss/Eaton
SKU: 1862X10 Danfoss
Price: 32.22 USD
Availability: InStock

$32.22 - $32.22

$32.22

$32.22 - $32.22

$32.22

Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Union

Quantity

Specifications for Variant SKU: 1862X10 Danfoss
Material(s):	Brass
Compatible with the following Series:	3270 Series \| 4247 Series \| 4245 Series

Applications:
Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing. Not for fuel, water or oil.
Advantages:
Easy, fast assembly. One piece fitting. Reusable. Field Serviceable. Moderate vibration resistance.
Used With:
SAE J844 Type A and B. Danfoss / Eaton Air Brake Tubing.
Material:
CA360 Brass (Body & Collet). EP (Ethylene Propylene) - O-Ring.
Pressure:
Vacuum to 150 PSI
Temperature Range:
-40°F to +200°F (-40°C to +93°C)
Conformance:
Ref. SAE No. AA0101 Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Quick Connect Air Brake Fitting Assembly & Disassembly Guide.PDF


Brass Part Number	Tube O.D.	Diameter C	L
1862X2.5	5/32"	0.44"	1.41"
1862X3	3/16"	0.44"	1.62"
1862X4	1/4"	0.53"	1.62"
1862X6	3/8"	0.69"	1.94"
1862X8	1/2"	0.83"	1.96"
1862X10	5/8"	0.96"	2.51"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Shop Parts by Danfoss (Eaton - Aeroquip)
