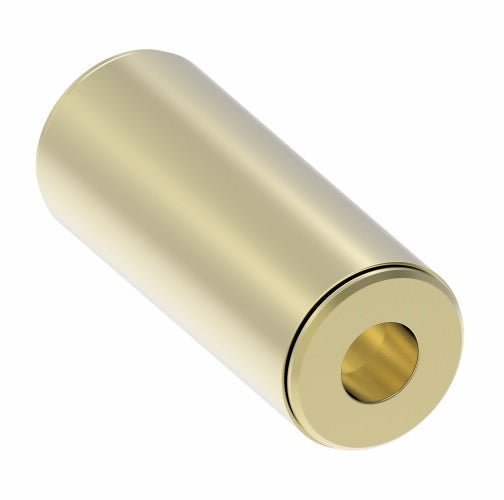

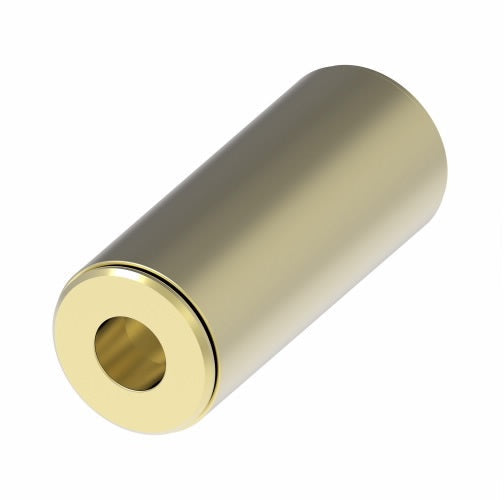

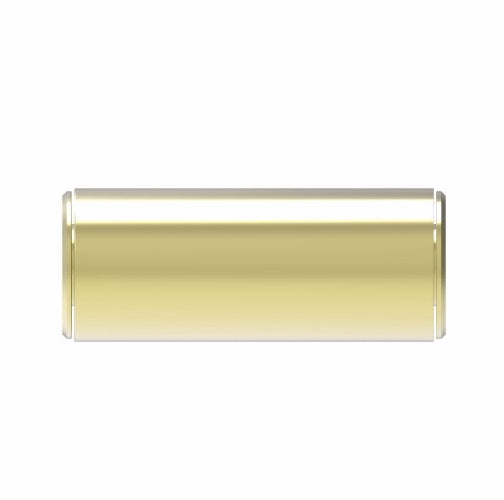

1862X2.5 by Danfoss | Quick Connect Air Brake Adapter | Union | 5/32" Tube OD x 5/32" Tube OD | Brass
1862X2.5 by Danfoss | Quick Connect Air Brake Adapter | Union | 5/32" Tube OD x 5/32" Tube OD | Brass
1862X2.5 by Danfoss | Quick Connect Air Brake Adapter | Union | 5/32" Tube OD x 5/32" Tube OD | Brass
1862X2.5 by Danfoss | Quick Connect Air Brake Adapter | Union | 5/32" Tube OD x 5/32" Tube OD | Brass

1862X2.5 by Danfoss | Quick Connect Air Brake Adapter | Union | 5/32" Tube OD x 5/32" Tube OD | Brass

$12.11 - $12.11
$12.11
$12.11 - $12.11
$12.11

Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Union
Specifications for Variant SKU: 1862X2.5 Danfoss
Material(s): Brass
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
  • Not for fuel, water or oil.
Advantages:
  • Easy, fast assembly.
  • One piece fitting.
  • Reusable.
  • Field Serviceable.
  • Moderate vibration resistance.
Used With:
  • SAE J844 Type A and B.
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass (Body & Collet).
  • EP (Ethylene Propylene) - O-Ring.
Pressure:
  • Vacuum to 150 PSI
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. AA0101
  • Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Brass
Part Number 		Tube O.D. Diameter
C		 L
1862X2.5 5/32" 0.44" 1.41"
1862X3 3/16" 0.44" 1.62"
1862X4 1/4" 0.53" 1.62"
1862X6 3/8" 0.69" 1.94"
1862X8 1/2" 0.83" 1.96"
1862X10 5/8" 0.96" 2.51"
