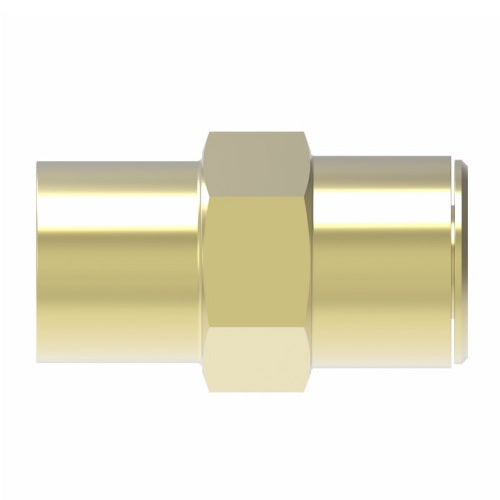

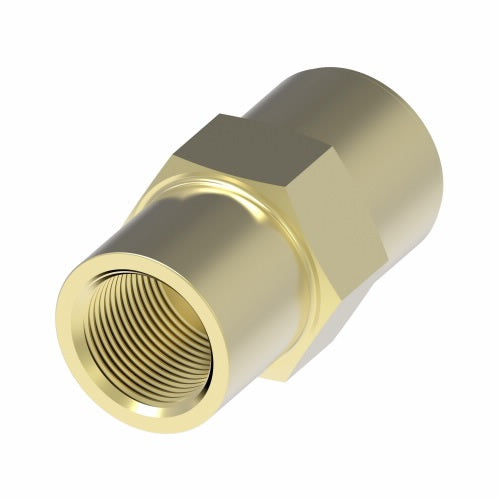

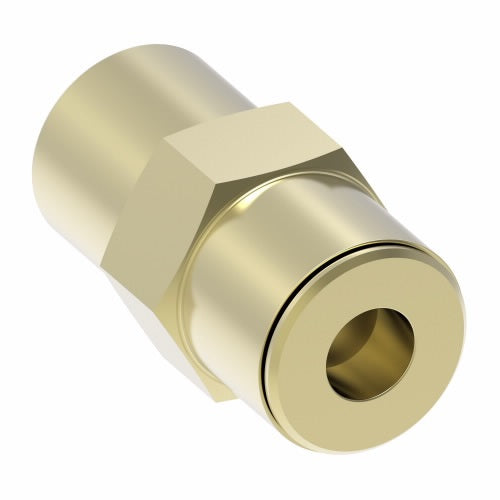

1866X4 by Danfoss | Quick Connect Air Brake Adapter | Female Connector | 1/4" Tube OD x 1/8" Female NPTF | Brass
1866X4 by Danfoss | Quick Connect Air Brake Adapter | Female Connector | 1/4" Tube OD x 1/8" Female NPTF | Brass
1866X4 by Danfoss | Quick Connect Air Brake Adapter | Female Connector | 1/4" Tube OD x 1/8" Female NPTF | Brass
1866X4 by Danfoss | Quick Connect Air Brake Adapter | Female Connector | 1/4" Tube OD x 1/8" Female NPTF | Brass

1866X4 by Danfoss | Quick Connect Air Brake Adapter | Female Connector | 1/4" Tube OD x 1/8" Female NPTF | Brass

$17.83 - $17.83
$17.83
$17.83 - $17.83
$17.83

Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Female Connector
Specifications for Variant SKU: 1866X4 Danfoss
Material(s): Brass
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
  • Not for fuel, water or oil.
Advantages:
  • Easy, fast assembly.
  • One piece fitting.
  • Reusable.
  • Field Serviceable.
  • Moderate vibration resistance.
Used With:
  • SAE J844 Type A and B.
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass (Body & Collet).
  • EP (Ethylene Propylene) - O-Ring.
Pressure:
  • Vacuum to 150 PSI
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. AA0103
  • Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Brass
Part Number 		Tube O.D. Female Pipe Thread Hex
C		 L
1866X4 1/4" 1/8" 9/16" 1.33"
1866X4X4 1/4" 1/4" 11/16" 1.58"
1866X6X2 3/8" 1/8" 11/16" 1.45"
1866X6 3/8" 1/4" 11/16" 1.69"
1866X6X6 3/8" 3/8" 13/16" 1.75"
1866X8X4 1/2" 1/4" 13/16" 1.66"
1866X8 1/2" 3/8" 13/16" 1.73"
1866X8X8 1/2" 1/2" 1" 1.97"
