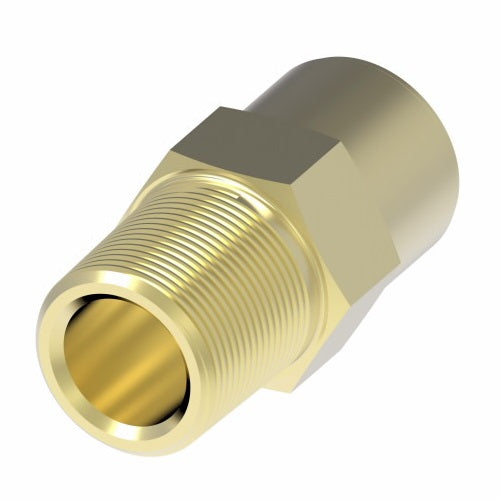

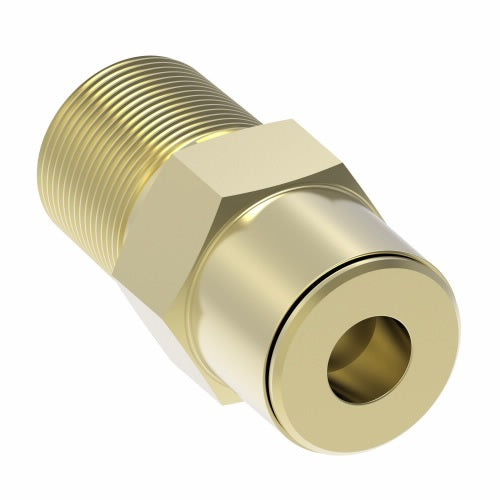

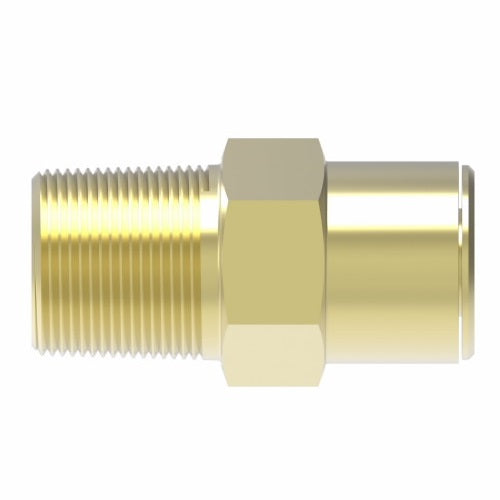

1868X8X4 by Danfoss | Quick Connect Air Brake Adapter | Male Connector | 1/2" Tube OD x 1/4" Male NPTF | Brass
1868X8X4 by Danfoss | Quick Connect Air Brake Adapter | Male Connector | 1/2" Tube OD x 1/4" Male NPTF | Brass
1868X8X4 by Danfoss | Quick Connect Air Brake Adapter | Male Connector | 1/2" Tube OD x 1/4" Male NPTF | Brass
1868X8X4 by Danfoss | Quick Connect Air Brake Adapter | Male Connector | 1/2" Tube OD x 1/4" Male NPTF | Brass

1868X8X4 by Danfoss | Quick Connect Air Brake Adapter | Male Connector | 1/2" Tube OD x 1/4" Male NPTF | Brass

$17.14 - $17.14
$17.14
$17.14 - $17.14
$17.14

Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Male Connector
Specifications for Variant SKU: 1868X8X4 Danfoss
Material(s): Brass
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
  • Not for fuel, water or oil.
Advantages:
  • Easy, fast assembly.
  • One piece fitting.
  • Reusable.
  • Field Serviceable.
  • Moderate vibration resistance.
Used With:
  • SAE J844 Type A and B.
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass (Body & Collet).
  • EP (Ethylene Propylene) - O-Ring.
Pressure:
  • Vacuum to 150 PSI
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. AA0102
  • Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Brass
Part Number 		Tube O.D. Male Pipe Thread Hex
C		 D1 L
1868X2.5X1 5/32" 1/16" 3/8" 0.09" 0.92"
1868X2.5 5/32" 1/8" 7/16" 0.25" 0.92"
1868X3 3/16" 1/8" 1/2" 0.25" 0.92"
1868X4 1/4" 1/8" 9/16" 0.19" 0.95"
1868X4X4 1/4" 1/4" 9/16" 0.34" 1.18"
1868X4X6 1/4" 3/8" 11/16" 0.41" 1.17"
1868X6X2 3/8" 1/8" 11/16" 0.19" 1.33"
1868X6 3/8" 1/4" 11/16" 0.31" 1.29"
1868X6X6 3/8" 3/8" 11/16" 0.41" 1.27"
1868X6X8 3/8" 1/2" 7/8" 0.53" 1.47"
1868X8X4 1/2" 1/4" 13/16" 0.31" 1.46"
1868X8 1/2" 3/8" 13/16" 0.41" 1.35"
1868X8X8 1/2" 1/2" 7/8" 0.53" 1.50"
1868X10X6 5/8" 3/8" 1" 0.41" 1.72"
1868X10 5/8" 1/2" 1" 0.53" 1.71"
1868X12 3/4" 1/2" 1-1/16" 0.53" 1.72"
