Fittings and Clamps  > Tube Fittings  > Tube Adapters

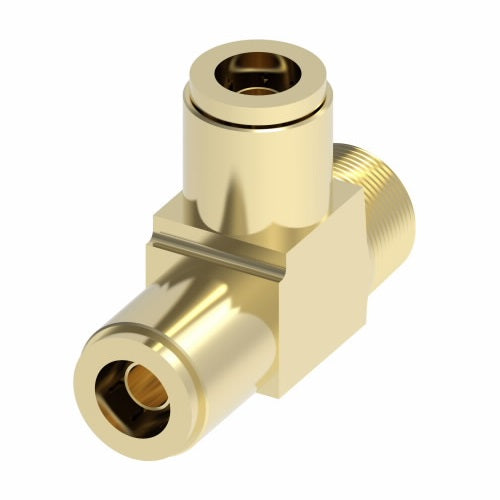

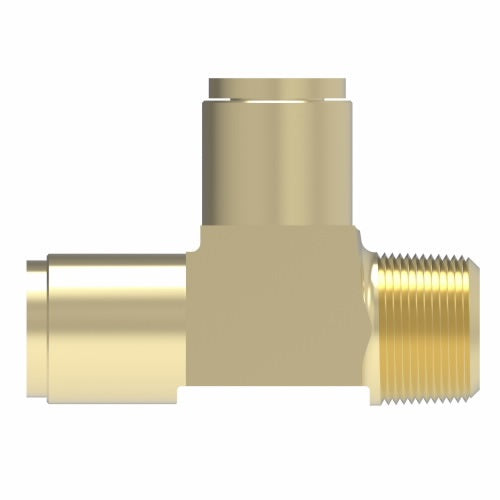

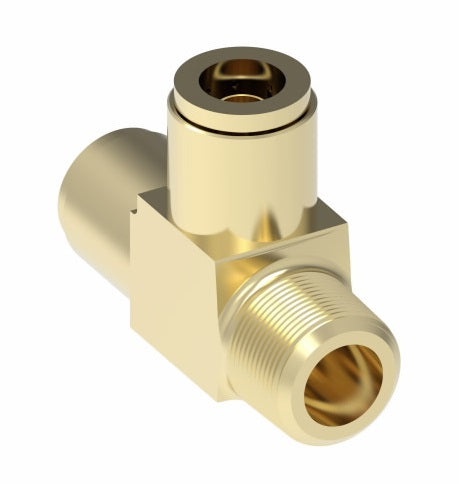

1871X4 by Danfoss | Quick Connect Air Brake Adapter | Male Run Tee | 1/4" Tube OD x 1/8" Male Pipe x 1/4" Tube OD | Brass

1871X4 by Danfoss | Quick Connect Air Brake Adapter | Male Run Tee | 1/4" Tube OD x 1/8" Male Pipe x 1/4" Tube OD | Brass

$15.16

Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Male Run Tee
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1871X4 Danfoss
Shape (Orientation): Tee
Material(s): Brass
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
  • Not for fuel, water or oil.
Advantages:
  • Easy, fast assembly.
  • One piece fitting.
  • Reusable.
  • Field Serviceable.
  • Moderate vibration resistance.
Used With:
  • SAE J844 Type A and B.
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass (Body & Collet).
  • EP (Ethylene Propylene) - O-Ring.
Pressure:
  • Vacuum to 150 PSI
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. AA0424
  • Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Brass
Part Number 		Tube O.D. Male Pipe Thread D1 M M1 N
1871X4 1/4" 1/8" 0.23" 0.93" 0.93" 0.68"
1871X4X4 1/4" 1/4" 0.32" 0.93" 0.93" 0.83"
1871X6 3/8" 1/4" 0.31" 1.15" 1.15" 0.90"
1871X6X6 3/8" 3/8" 0.41" 1.15" 1.14" 0.90"
1871X6X4X4 3/8x1/4" 1/4" 0.31" 1.14" 1.07" 0.96"
1871X8 1/2" 3/8" 0.41" 1.09" 1.10" 1.22"
