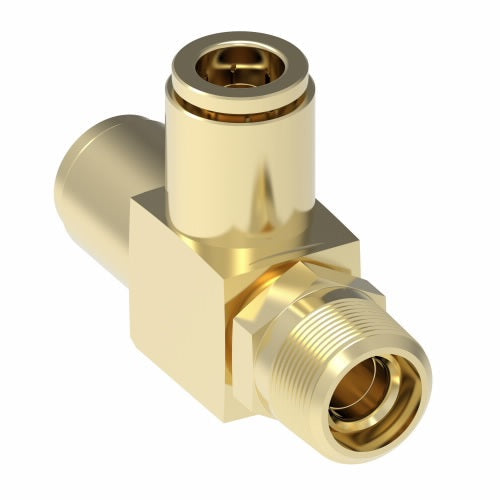

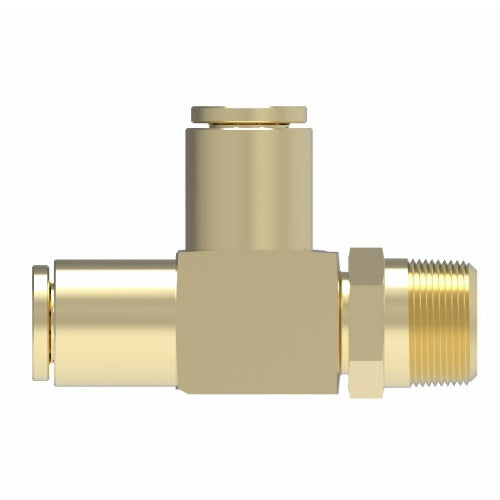

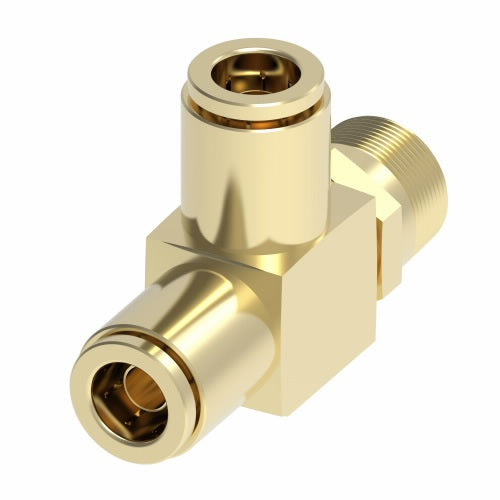

1871X8X4S by Danfoss | Quick Connect Air Brake Adapter | Swivel Male Run Tee | 1/2" Tube OD x 1/4" Male Pipe x 1/2" Tube OD | Brass
1871X8X4S by Danfoss | Quick Connect Air Brake Adapter | Swivel Male Run Tee | 1/2" Tube OD x 1/4" Male Pipe x 1/2" Tube OD | Brass
1871X8X4S by Danfoss | Quick Connect Air Brake Adapter | Swivel Male Run Tee | 1/2" Tube OD x 1/4" Male Pipe x 1/2" Tube OD | Brass
1871X8X4S by Danfoss | Quick Connect Air Brake Adapter | Swivel Male Run Tee | 1/2" Tube OD x 1/4" Male Pipe x 1/2" Tube OD | Brass

1871X8X4S by Danfoss | Quick Connect Air Brake Adapter | Swivel Male Run Tee | 1/2" Tube OD x 1/4" Male Pipe x 1/2" Tube OD | Brass

$69.79 - $69.79
$69.79
$69.79 - $69.79
$69.79

Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Swivel Male Run Tee
Specifications for Variant SKU: 1871X8X4S Danfoss
Shape (Orientation): Tee
Material(s): Brass
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
  • Not for fuel, water or oil.
Advantages:
  • Easy, fast assembly.
  • One piece fitting.
  • Reusable.
  • Field Serviceable.
  • Moderate vibration resistance.
Used With:
  • SAE J844 Type A and B.
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass (Body & Collet).
  • EP (Ethylene Propylene) - O-Ring.
Pressure:
  • Vacuum to 150 PSI
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. AA04EE
  • Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Brass
Part Number		 Tube O.D. Male Pipe Thread D1 M M1 N Hex
C
1871X4S 1/4" 1/8" 0.14" 0.93" 0.93" 0.82" 7/16"
1871X4X4S 1/4" 1/4" 0.23" 0.93" 0.93" 1.07" 9/16"
1871X6S 3/8" 1/4" 0.23" 1.15" 1.15" 1.20" 9/16"
1871X6X6S 3/8" 3/8" 0.30" 1.15" 1.15" 1.20" 11/16"
1871X8X4S 1/2" 1/4" 0.22" 1.21" 1.18" 1.22" 9/16"
