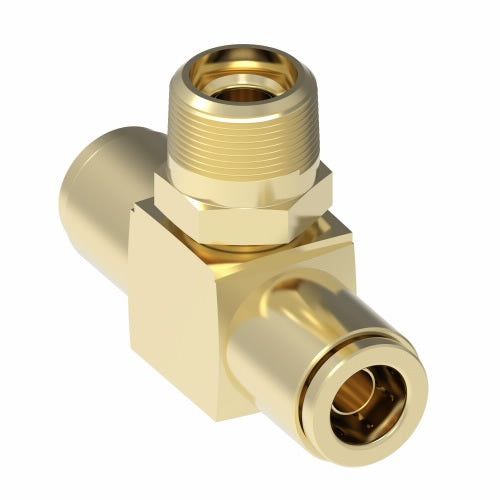

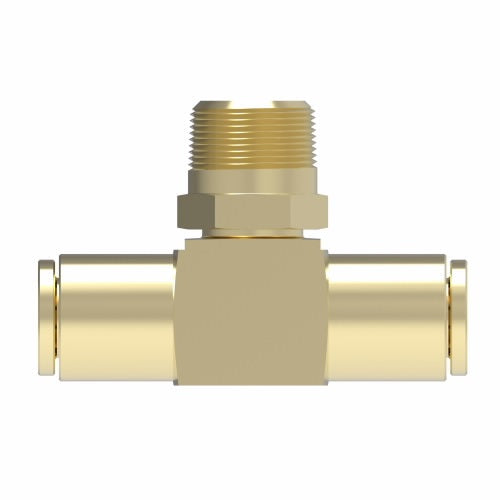

1872X8 by Danfoss | Quick Connect Air Brake Adapter | Male Branch Tee | 1/2" Tube OD x 1/2" Tube OD x 3/8" Male Pipe | Brass
1872X8 by Danfoss | Quick Connect Air Brake Adapter | Male Branch Tee | 1/2" Tube OD x 1/2" Tube OD x 3/8" Male Pipe | Brass
1872X8 by Danfoss | Quick Connect Air Brake Adapter | Male Branch Tee | 1/2" Tube OD x 1/2" Tube OD x 3/8" Male Pipe | Brass
1872X8 by Danfoss | Quick Connect Air Brake Adapter | Male Branch Tee | 1/2" Tube OD x 1/2" Tube OD x 3/8" Male Pipe | Brass

1872X8 by Danfoss | Quick Connect Air Brake Adapter | Male Branch Tee | 1/2" Tube OD x 1/2" Tube OD x 3/8" Male Pipe | Brass

$51.25 - $51.25
$51.25
$51.25 - $51.25
$51.25

Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Male Branch Tee
Specifications for Variant SKU: 1872X8 Danfoss
Shape (Orientation): Tee
Material(s): Brass
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
  • Not for fuel, water or oil.
Advantages:
  • Easy, fast assembly.
  • One piece fitting.
  • Reusable.
  • Field Serviceable.
  • Moderate vibration resistance.
Used With:
  • SAE J844 Type A and B.
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass (Body & Collet).
  • EP (Ethylene Propylene) - O-Ring.
Pressure:
  • Vacuum to 150 PSI
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. AA0425
  • Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Brass
Part Number 		Tube O.D. Male Pipe Thread D1 M M1 N
1872X3 3/16" 1/8" 0.19" 0.75" 0.74" 0.64"
1872X4 1/4" 1/8" 0.19" 0.93" 0.93" 0.64"
1872X4X4 1/4" 1/4" 0.31" 0.93" 0.93" 0.83"
1872X6 3/8" 1/4" 0.31" 1.15" 1.15" 0.91"
1872X6X6 3/8" 3/8" 0.31" 1.15" 1.15" 0.91"
1872X8X4 1/2" 1/4" 0.31" 1.22" 1.22" 0.98"
1872X8 1/2" 3/8" 0.41" 1.24" 1.24" 0.99"
1872X8X8 1/2" 1/2" 0.53" 1.22" 1.22" 1.12"
