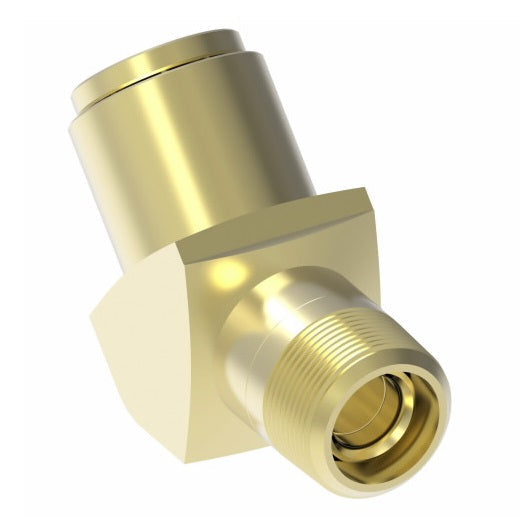

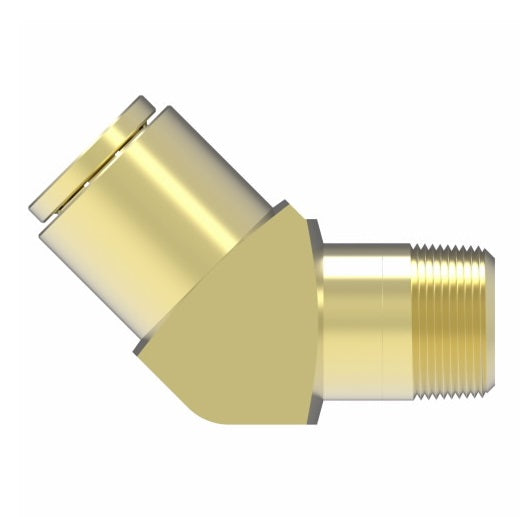

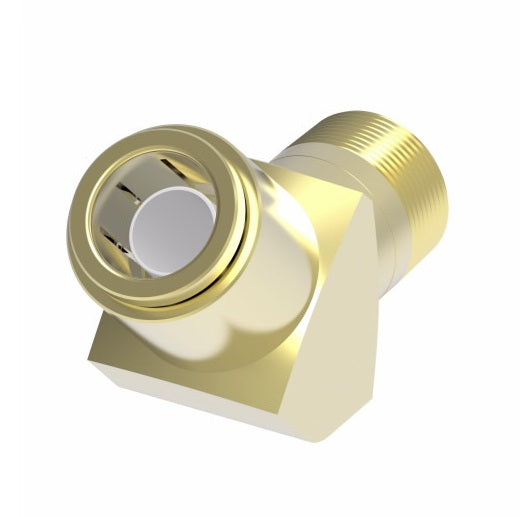

1880X10X6 by Danfoss | Quick Connect Air Brake Adapter | Male Connector 45° Elbow | 5/8" Tube OD x 3/8" Male NPTF | Brass
1880X10X6 by Danfoss | Quick Connect Air Brake Adapter | Male Connector 45° Elbow | 5/8" Tube OD x 3/8" Male NPTF | Brass
1880X10X6 by Danfoss | Quick Connect Air Brake Adapter | Male Connector 45° Elbow | 5/8" Tube OD x 3/8" Male NPTF | Brass
1880X10X6 by Danfoss | Quick Connect Air Brake Adapter | Male Connector 45° Elbow | 5/8" Tube OD x 3/8" Male NPTF | Brass

1880X10X6 by Danfoss | Quick Connect Air Brake Adapter | Male Connector 45° Elbow | 5/8" Tube OD x 3/8" Male NPTF | Brass

$45.98 - $45.98
$45.98
$45.98 - $45.98
$45.98

Aeroquip® by Danfoss
Quick Connect Air Brake Adapter - Male Connector
Specifications for Variant SKU: 1880X10X6 Danfoss
Shape (Orientation): 45 Degree
Material(s): Brass
Compatible with the following Series: 3270 Series  |   4247 Series  |   4245 Series
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
  • Not for fuel, water or oil.
Advantages:
  • Easy, fast assembly.
  • One piece fitting.
  • Reusable.
  • Field Serviceable.
  • Moderate vibration resistance.
Used With:
  • SAE J844 Type A and B.
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass (Body & Collet).
  • EP (Ethylene Propylene) - O-Ring.
Pressure:
  • Vacuum to 150 PSI
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. AA0302
  • Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Brass
Part Number 		Tube O.D. Male Pipe Thread D1 M N
1880X4 1/4" 1/8" 0.19" 0.95" 0.59"
1880X4X4 1/4" 1/4" 0.31" 0.95" 0.59"
1880X6X2 3/8" 1/8" 0.25" 1.05" 0.48"
1880X6 3/8" 1/4" 0.31" 1.05" 0.69"
1880X6X6 3/8" 3/8" 0.41" 1.10" 0.63"
1880X6X8 3/8" 1/2" 0.53" 1.20" 0.70"
1880X8X4 1/2" 1/4" 0.31" 1.07" 0.88"
1880X8 1/2" 3/8" 0.41" 0.99" 0.72"
1880X8X8 1/2" 1/2" 0.53" 0.99" 0.82"
1880X10X6 5/8" 3/8" 0.41" 1.13" 0.88"
1880X10 5/8" 1/2" 0.53" 1.26" 0.92"
1880X12 3/4" 1/2" 0.53" 1.16" 0.98"
