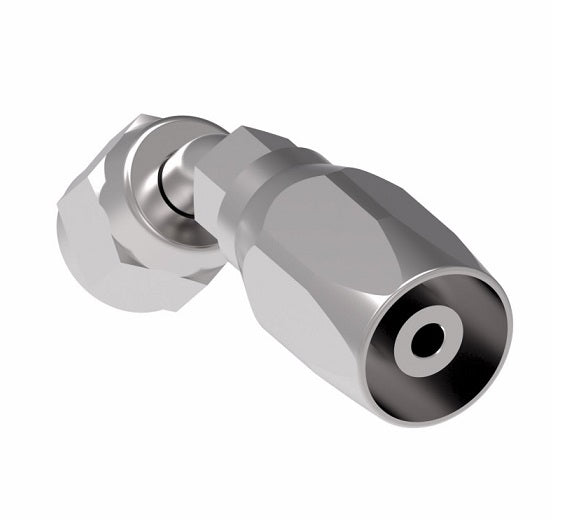

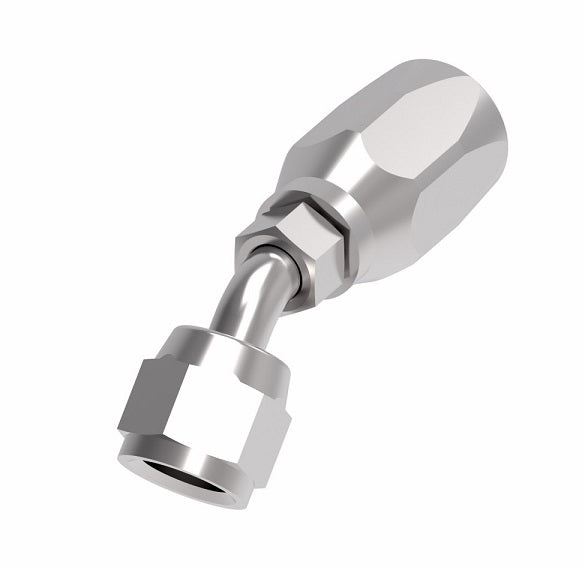

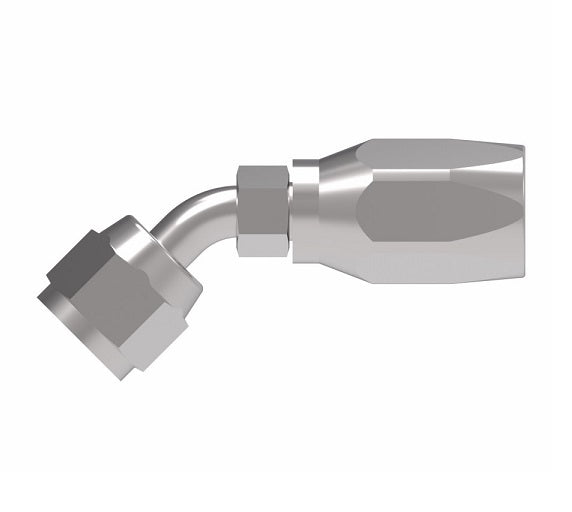

190297-10S Aeroquip by Danfoss | Female Universal Swivel 45° Elbow 100R5 Reusable Hose Fitting | -10 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -10 Reusable Hose End | Steel

190297-10S Aeroquip by Danfoss | Female Universal Swivel 45° Elbow 100R5 Reusable Hose Fitting | -10 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -10 Reusable Hose End | Steel

$52.28 - $52.28
$52.28
$52.28 - $52.28
$52.28

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female Universal Swivel - 45° Elbow

Female JIC Swivel also Couples with SAE 45° Flare.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 190297-10S Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: 5/8in Female JIC, 5/8in Reusable Hose End, 5/8in Female SAE 45 Flare
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 1503 Series  |   2580 Series  |   2651 Series  |   FC234 Series  |   FC300 Series  |   FC321 Series  |   FC350 Series  |   FC355 Series  |   FC802 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ H
190297-4S -04 7/16-20 1.85" 1.10" 0.13" 0.33"
190297-5S -05 1/2-20 2.07" 1.29" 0.18" 0.36"
190297-8S -08 3/4-16 2.99" 1.72" 0.36" 0.55
190297-10S -10 7/8-14 3.24" 1.95" 0.46" 0.64"
