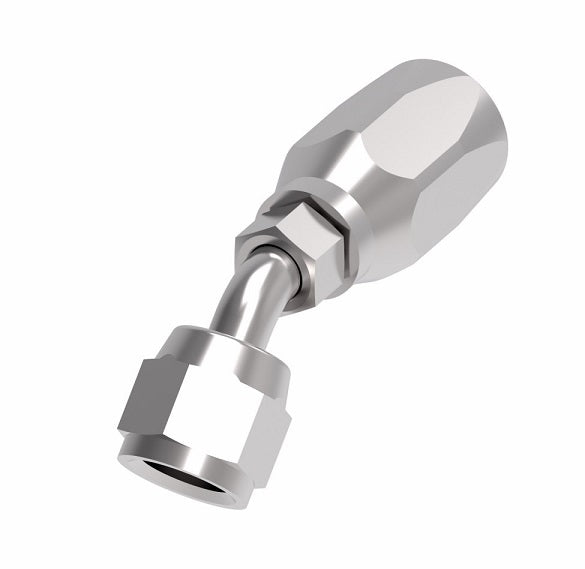

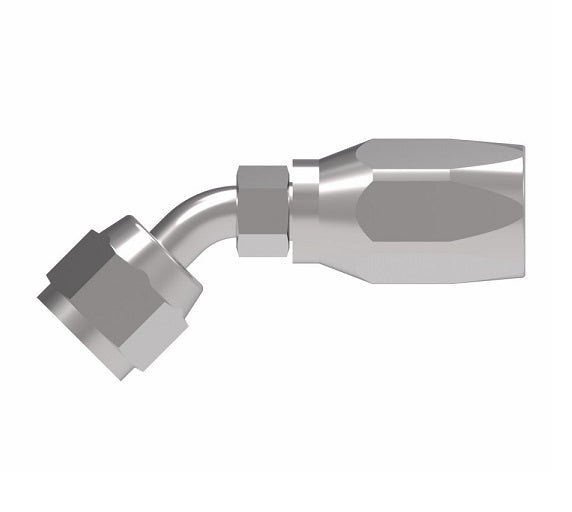

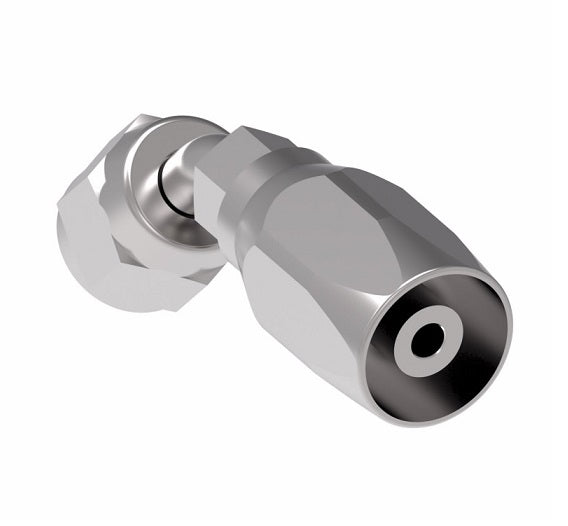

190297-5S Aeroquip by Danfoss | Female Universal Swivel 45° Elbow 100R5 Reusable Hose Fitting | -05 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -05 Reusable Hose End | Steel

Name: 190297-5S Aeroquip by Danfoss | Female Universal Swivel 45° Elbow 100R5 Reusable Hose Fitting | -05 Female JIC Swivel (Also Couples w/ SAE 45° Flare) x -05 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: 190297-5S Danfoss
Price: 34.35 USD
Availability: InStock

$34.35 - $34.35

$34.35

$34.35 - $34.35

$34.35

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - Female Universal Swivel - 45° Elbow

Female JIC Swivel also Couples with SAE 45° Flare.

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 190297-5S Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	5/16in Female JIC, 5/16in Reusable Hose End, 5/16in Female SAE 45 Flare
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 Series \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ	H
190297-4S	-04	7/16-20	1.85"	1.10"	0.13"	0.33"
190297-5S	-05	1/2-20	2.07"	1.29"	0.18"	0.36"
190297-8S	-08	3/4-16	2.99"	1.72"	0.36"	0.55
190297-10S	-10	7/8-14	3.24"	1.95"	0.46"	0.64"
