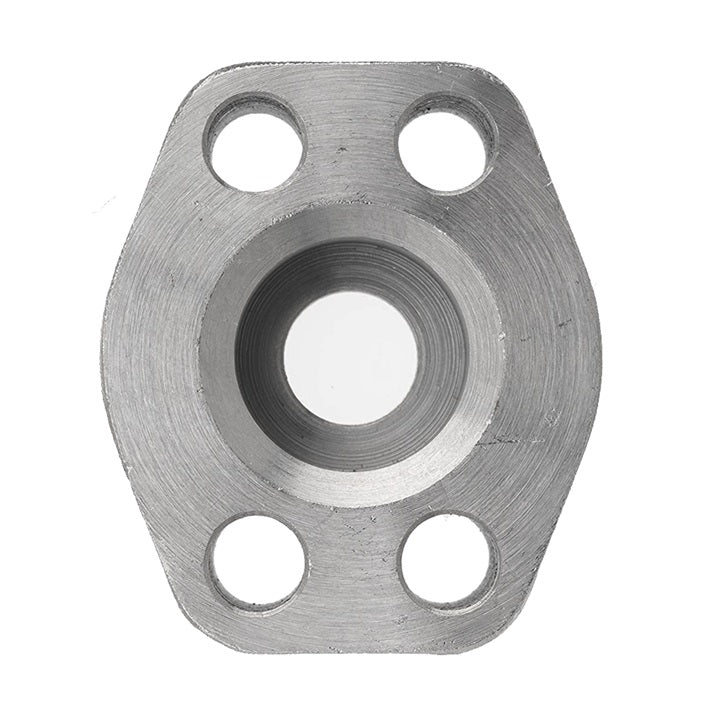

1936-62-32-32 by Brennan Inc. | -32 Flat Socket Block Pipe x Code 62 -32 Female Face Flange | Steel

1936-62-32-32 by Brennan Inc. | -32 Flat Socket Block Pipe x Code 62 -32 Female Face Flange | Steel

$89.37 - $89.37
$89.37
$113.40
$113.40 - $113.40
$113.40

Brennan Inc.
Flange Fittings: 1936-62 - Flat Socket Block Pipe x Female Face Flange (Code 62)
Specifications for Variant SKU: 1936-62-32-32 Brennan
Ends Configuration: 2in Female Code 62 Flange
Material(s): Steel
Part Number Material Pipe Size Flange Size A B C D E F G H J Min J Max K1 Drill K2 Thread
1936-62-08-08 Steel 1/2" 1/2" 1.940" 2.30" 0.718" 1.594" 0.570" 0.560" 0.855" 0.50" 1.000" 1.005" 0.344" 5/16-18"
1936-62-12-12 Steel 3/4" 3/4" 2.380" 2.810" 0.937" 2.000" 1.25" 0.560" 1.063" 0.75" 1.250" 1.255" 0.406" 3/8-16"
1936-62-16-16 Steel 1" 1" 2.75" 3.190" 1.093" 2.250" 1.50" 0.630" 1.328" 1.00" 1.560" 1.565" 0.469" 7/16-14
1936-62-20-20 Steel 1-1/4" 1-1/4" 3.06" 3.75" 1.250" 2.625" 1.500" 0.690" 1.672" 1.25" 1.750" 1.755" 0.531" 1/2-13"
1936-62-24-24 Steel 1-1/2" 1-1/2" 3.750" 4.440" 1.437" 3.125" 1.750" 0.750" 1.922" 1.50" 2.115" 2.125" 0.656" 5/8-11"
1936-62-32-32 Steel 2" 2" 4.50" 5.25" 1.750" 3.812" 1.750" 0.875" 2.406" 2.00" 2.490" 2.500" 0.781" 3/4-10"
1936-62-40-40 Steel 2-1/2" 2-1/2" 5.870" 6.870" 2.312" 4.875" 2.06" 1.000" 2.906" 2.50" 2.995" 3.005" 0.906" 7/8-9"
1936-62-48-48 Steel 3" 3" 7.00" 8.50" 2.812" 6.000" 2.620" 1.250" 3.547" 3.00" 3.615" 3.625" 1.156" 11/8-7"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
