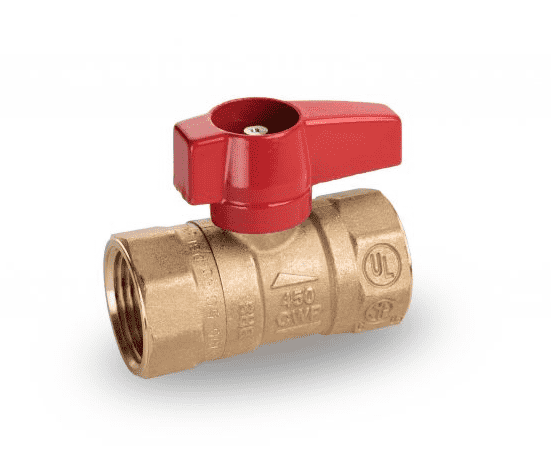

RuB Inc. - Gas Service Ball Valves - S.195 Series - Female NPT x Female NPT - Gas Cock with Aluminum Red Wedge Handle

Package Quantity: 14 Units

Quantity

Specifications for Variant SKU: 195C41 RuB Inc \| 14 \|
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female NPT, 3/8in Female NPT, Some Ends Match
Material(s):	Brass
Seal Material(s):	FPM

Quality:
24h 100% seal test guaranteed Dual sealing system allows valve to be operated in either direction making installation easier No metal-to-metal moving parts No maintenance ever required Handle clearly shows ball position Silicone-free lubricant on all seals Handle stops on body to avoid stresses at stem Chrome plated brass ball for longer life
Body:
Hot forged sand blasted, unplated brass body and cap sealed with Loctite® or equivalent thread sealant Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
Blowout-proof nickel plated brass stem Two FPM O-rings at the stem for maximum safety
Sealing:
Pure PTFE self-lubricating seats with flexible-lip design
Threads:
NPT taper ANSI B.1.20.1 female by female threads
Flow:
Standard port for compact design
Handle:
Aluminum T-handle enameled red Handle removable with valve in service WARNING: do not exceed reasonable temperature and/or electrical load
Working Pressure & Temperature:
Maximum working pressure 600 PSI (CWP) -40°F/+350°F WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in Compliance with:
Canadian standards Association (United States, Canada) GOST-R (Russia) Hygiene and epidemic center in Moscow city (Russia) RoHS Complaint (Russia) Underwriters Laboratories (United States & Canada) Meeting WW-V-35C Federal U.S. Specification NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	DN	I	L	G	A	H	CH
195C41	3/8"	3/8"	0.393"	0.472"	1.772"	0.886"	1.299"	1.437"	0.787"
195D41	1/2"	1/2"	0.453"	0.610"	2.126"	1.043"	1.299"	1.535"	0.984"
195E41	3/4"	3/4"	0.590"	0.669"	2.441"	1.220"	1.299"	1.614"	1.220"
195F41	1"	1"	0.787"	0.827"	2.835"	1.417"	1.299"	1.752"	1.496"

*DN shows the nominal flow diameter.

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
