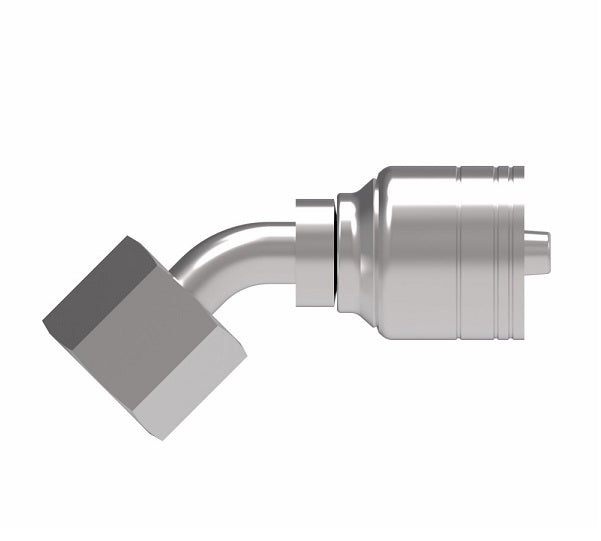

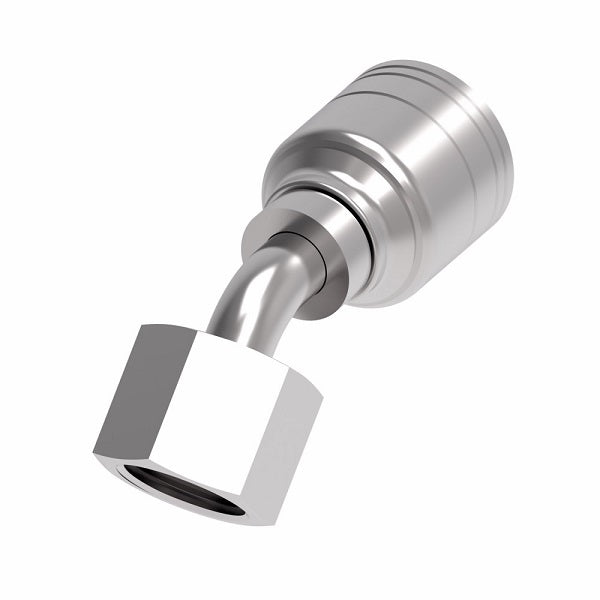

Name: 1A10DSA6 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 45° Elbow (DSA) Crimp Fitting | S14 Female DKO/DIN x -06 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A10DSA6 Danfoss
Price: 54.52 USD
Availability: InStock

$54.52 - $54.52

$54.52

$54.52 - $54.52

$54.52

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Heavy Duty, Crimp Fitting (DSA) - 45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A10DSA6 Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	S14 Female DIN, 3/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Tube OD	Hose Size	A	D	E&Oslash	H	Hex 1
1A6DSA4	M18 x 1.5	10	-04	2.42"	1.50"	0.16"	0.67"	0.87"
1A8DSA6	M20 x 1.5	12	-06	2.69"	1.69"	0.26"	0.75"	0.94"
1A10DSA6	M22 x 1.5	14	-06	2.71"	1.71"	0.26"	0.79"	1.06"
1A12DSA8	M24 x 1.5	16	-08	3.14"	1.97"	0.38"	0.90"	1.18"
1A16DSA10	M30 x 2	20	-10	3.51"	2.36"	0.50"	1.02"	1.42"
1A20DSA12	M36 x 2	25	-12	4.23"	3.04"	0.61"	1.28"	1.81"
1A25DSA16	M42 x 2	30	-16	4.78"	3.42"	0.81"	1.48"	2.16"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
