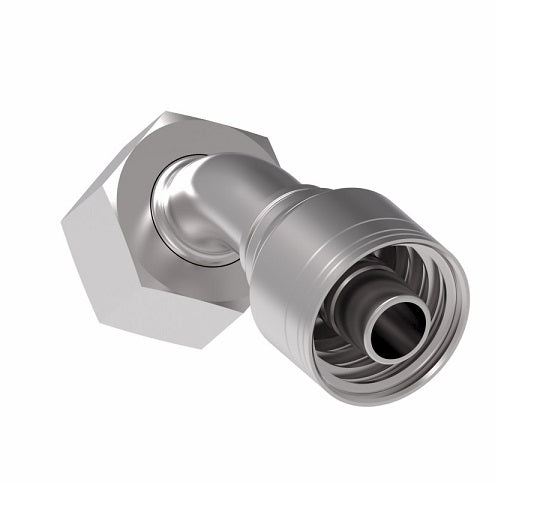

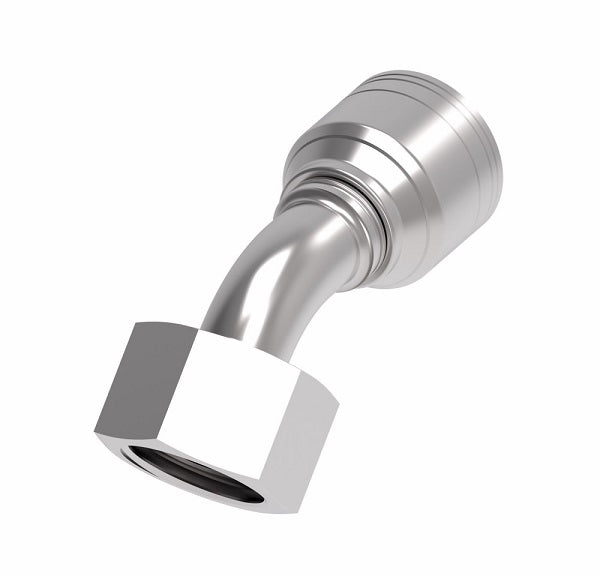

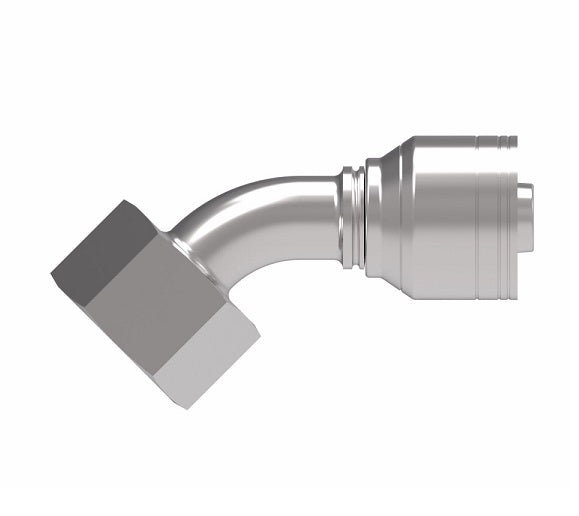

1A16DSA10 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 45° Elbow (DSA) Crimp Fitting | S20 Female DKO/DIN x -10 Hose Barb | Steel
1A16DSA10 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 45° Elbow (DSA) Crimp Fitting | S20 Female DKO/DIN x -10 Hose Barb | Steel
1A16DSA10 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 45° Elbow (DSA) Crimp Fitting | S20 Female DKO/DIN x -10 Hose Barb | Steel
1A16DSA10 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 45° Elbow (DSA) Crimp Fitting | S20 Female DKO/DIN x -10 Hose Barb | Steel

1A16DSA10 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 45° Elbow (DSA) Crimp Fitting | S20 Female DKO/DIN x -10 Hose Barb | Steel

$75.36 - $75.36
$75.36
$75.36 - $75.36
$75.36

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Heavy Duty, Crimp Fitting (DSA) - 45° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 1A16DSA10 Danfoss
Shape (Orientation): 45 Degree
Ends Configuration: S20 Female DIN, 5/8in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Thread Tube OD Hose Size A D E&Oslash H Hex 1
1A6DSA4 M18 x 1.5 10 -04 2.42" 1.50" 0.16" 0.67" 0.87"
1A8DSA6 M20 x 1.5 12 -06 2.69" 1.69" 0.26" 0.75" 0.94"
1A10DSA6 M22 x 1.5 14 -06 2.71" 1.71" 0.26" 0.79" 1.06"
1A12DSA8 M24 x 1.5 16 -08 3.14" 1.97" 0.38" 0.90" 1.18"
1A16DSA10 M30 x 2 20 -10 3.51" 2.36" 0.50" 1.02" 1.42"
1A20DSA12 M36 x 2 25 -12 4.23" 3.04" 0.61" 1.28" 1.81"
1A25DSA16 M42 x 2 30 -16 4.78" 3.42" 0.81" 1.48" 2.16"
