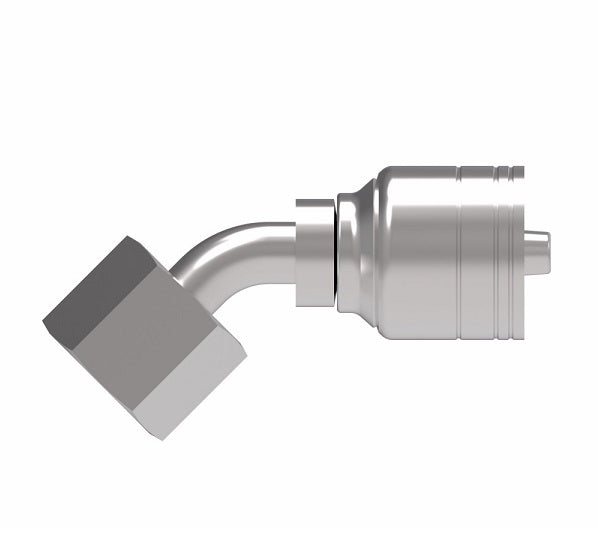

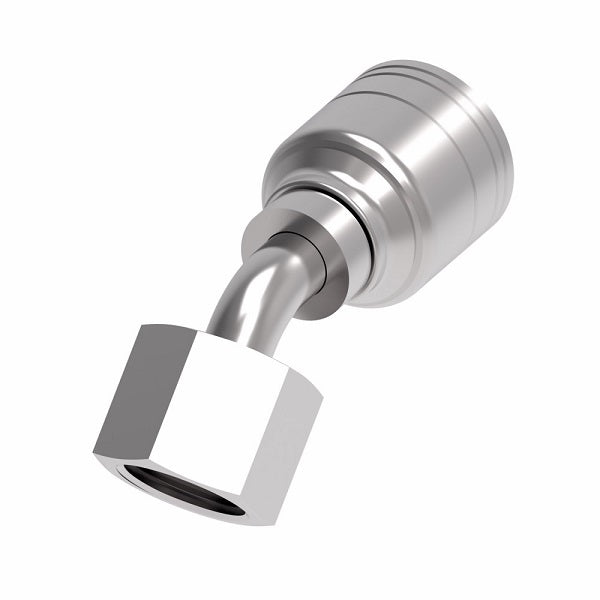

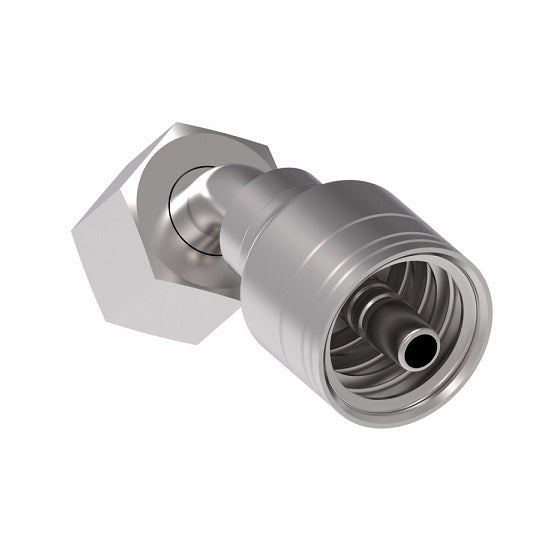

1A8DSA6 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 45° Elbow (DSA) Crimp Fitting | S12 Female DKO/DIN x -06 Hose Barb | Steel

1A8DSA6 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 45° Elbow (DSA) Crimp Fitting | S12 Female DKO/DIN x -06 Hose Barb | Steel

Name: 1A8DSA6 Aeroquip by Danfoss | 1 & 2 Wire TTC DKO Female Swivel, Heavy Duty, 45° Elbow (DSA) Crimp Fitting | S12 Female DKO/DIN x -06 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: 1A8DSA6 Danfoss
Price: 48.1 USD
Availability: InStock

$48.10 - $48.10

$48.10

$48.10 - $48.10

$48.10

Aeroquip® by Danfoss
1 & 2 Wire TTC DKO/DIN Female Swivel, Heavy Duty, Crimp Fitting (DSA) - 45° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 1A8DSA6 Danfoss
Shape (Orientation):	45 Degree
Ends Configuration:	S12 Female DIN, 3/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2661 Series \| FC310 Series \| FC510 Series \| FC579 Series \| FC611 Series \| FC619 Series \| FC639 Series \| FC839B Series \| FC693 Series \| FC735 Series \| FC849 Series \| FC849B Series \| GH120 Series \| GH194 Series \| GH195 Series \| GH663 Series \| GH681 Series \| GH781 Series \| GH793 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Thread	Tube OD	Hose Size	A	D	E&Oslash	H	Hex 1
1A6DSA4	M18 x 1.5	10	-04	2.42"	1.50"	0.16"	0.67"	0.87"
1A8DSA6	M20 x 1.5	12	-06	2.69"	1.69"	0.26"	0.75"	0.94"
1A10DSA6	M22 x 1.5	14	-06	2.71"	1.71"	0.26"	0.79"	1.06"
1A12DSA8	M24 x 1.5	16	-08	3.14"	1.97"	0.38"	0.90"	1.18"
1A16DSA10	M30 x 2	20	-10	3.51"	2.36"	0.50"	1.02"	1.42"
1A20DSA12	M36 x 2	25	-12	4.23"	3.04"	0.61"	1.28"	1.81"
1A25DSA16	M42 x 2	30	-16	4.78"	3.42"	0.81"	1.48"	2.16"
