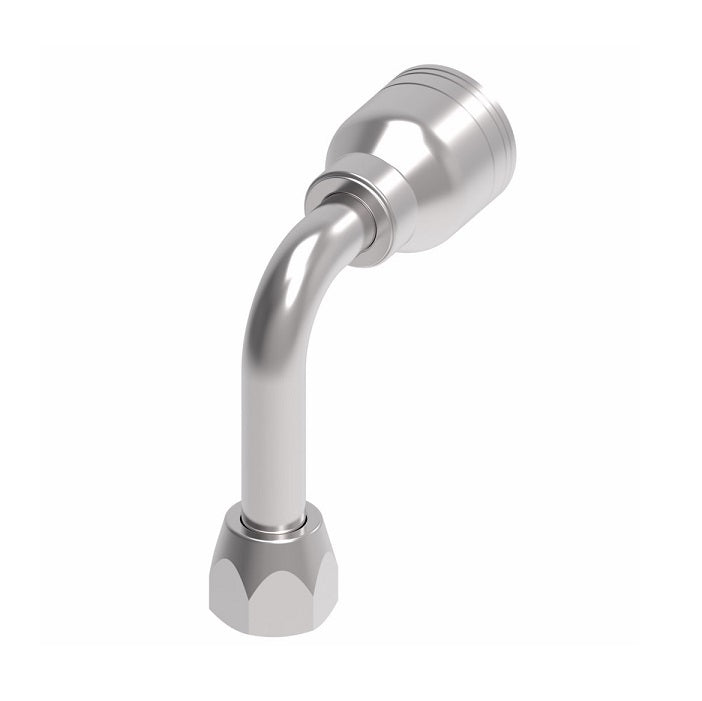

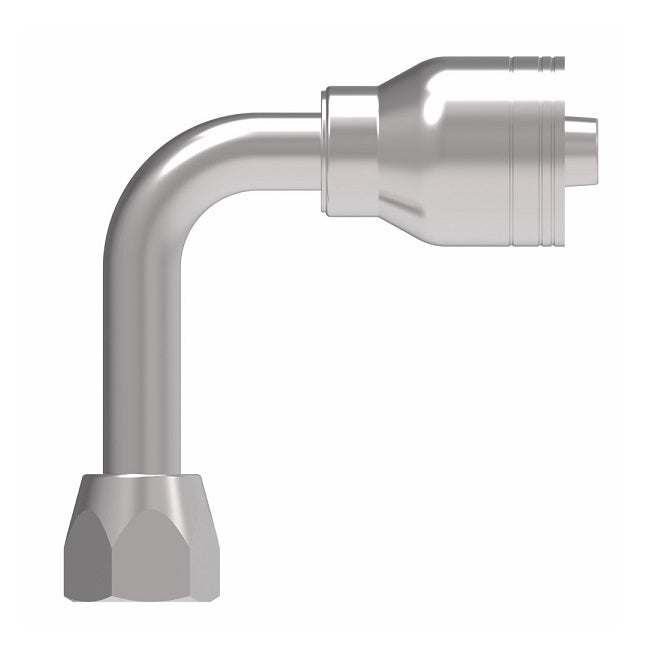

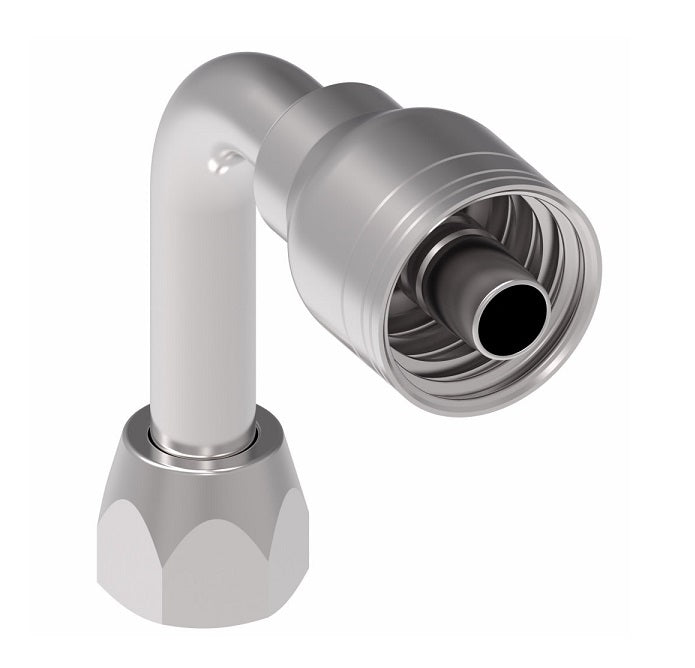

1AA8FJC8 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Long Drop Elbow (FJC) Crimp Fitting | -08 Female JIC 37° Swivel x -08 Hose Barb | Steel

1AA8FJC8 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Long Drop Elbow (FJC) Crimp Fitting | -08 Female JIC 37° Swivel x -08 Hose Barb | Steel

$44.13 - $44.13
$44.13
$44.13 - $44.13
$44.13

Aeroquip® by Danfoss
1 & 2 Wire Global TTC Female JIC 37° Swivel Long Drop Crimp Fitting (FJC) - 90° Elbow

(Formerly Eaton Aeroquip)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 1AA8FJC8 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female JIC, 1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel, Long Drop
Compatible with the following Series: 2661 Series  |   FC310 Series  |   FC510 Series  |   FC579 Series  |   FC611 Series  |   FC619 Series  |   FC639 Series  |   FC839B Series  |   FC693 Series  |   FC735 Series  |   FC849 Series  |   FC849B Series  |   GH120 Series  |   GH194 Series  |   GH195 Series  |   GH663 Series  |   GH681 Series  |   GH781 Series  |   GH793 Series
Technical Info:
Steel
Part Number 		Zinc-Nickel Plated Steel
Part Number 		Thread Hose Size A D EØ H Hex 1
1AA4FJC4* 1AA4FJC4TZ 7/16-20 -04 1.84" 0.92" 0.17" 1.80" 9/16"
1AA5FJC4* - 1/2-20 -04 1.92" 1.00" 0.17" 1.80" 5/8"
1AA4FJC6 - 7/16-20 -06 1.81" 0.98" 0.17" 1.80" 9/16"
1AA6FJC4 1AA6FJC4TZ 9/16-18 -04 - - - - -
1AA6FJC6 1AA6FJC6TZ 9/16-18 -06 2.22" 1.23" 0.24" 2.18" 11/16"
1AA8FJC6* - 3/4-16 -06 2.54" 1.54" 0.26" 2.45" 7/8"
1AA8FJC8* 1AA8FJC8TZ 3/4-16 -08 2.71" 1.54" 0.37" 2.45" 7/8"
1AA10FJC8* - 7/8-14 -08 2.78" 1.61" 0.38" 2.57" 1"
1AA10FJC10 - 7/8-14 -10 2.70" 1.54" 0.46" 2.57" 1"
1AA12FJC12** 1AA12FJC12TZ 1-1/16-12 -12 3.36" 2.04" 0.58" 3.76" 1-1/4"
1AA16FJC16*** 1AA16FJC16TZ 1-5/16-12 -16 3.56" 2.87" 0.81" 4.58" 1-1/2"
1AA20FJC20 1AA20FJC20TZ 1-5/8-12 -20 4.25" 2.52" 1.01" 5.53" 2"

* Swivel nuts are universal for both SAE 37° and SAE 45° connections.

** The 90º long drop tube elbow configuration meets a 3.5:1 burst, based on 4000 PSI operating pressure

*** The 90º long drop tube elbow configuration meets a 3.7:1 burst, based on 3000 PSI operating pressure.
