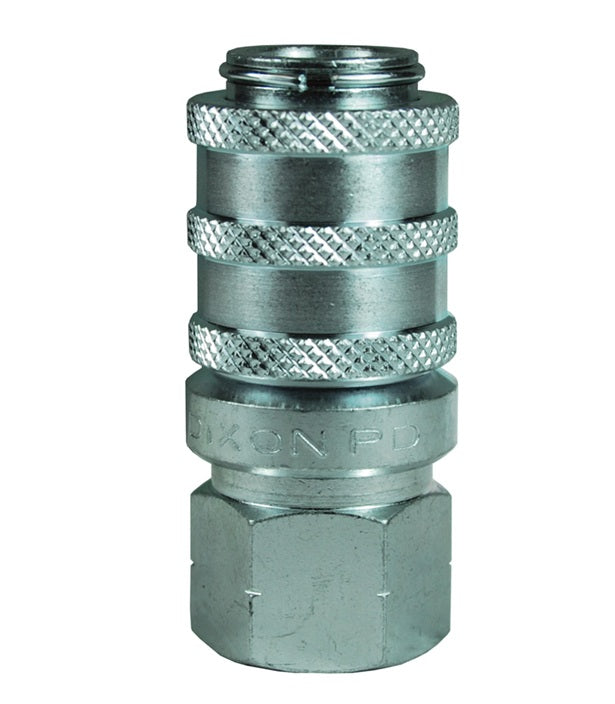

1PDF1 by Dixon Valve | Hydraulic Quick Disconnect Coupling | PD-Series | 1/8" Female NPT x 1/8" ISO15171-1 Diagnostic | Socket | Nitrile Seal | Steel

Save $2.17

$25.65

$25.65 - $25.65

$25.65

$23.48

$23.48 - $23.48

$23.48

Dixon Valve & Coupling
Hydraulic Coupling: PD-Series ISO15171-1 Diagnostic Coupler (Female Threads)

Quantity

Specifications for Variant SKU: 1PDF1 Dixon
Series:	PD-Series
Shape (Orientation):	Straight
Ends Configuration:	1/8in Female ISO-15171 Diagnostic QD Interchange, 1/8in Female NPTF
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Compatibility & Interchange:	Interchangeable to ISO15171-1 Parker PD-Series, Danfoss/Eaton/Aeroquip FD90

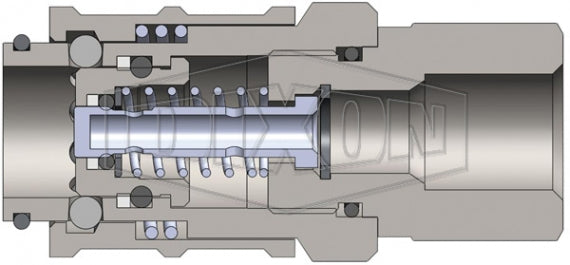

Construction:	Machined components are manufactured using solid steel bar stock. Stainless steel springs. Carbon steel balls and retaining rings. Steel plugs are machined from solid steel bar stock and hardened. Steel componentry is plated using ROHS-compliant trivalent chrome.
Seal Components:	Nitrile seals are standard, providing a temperature range of -40°F to 250°F (-40°C to 121°C). PTFE anti-extrusion ring protects main coupler O-ring from dynamic impulse pressure damage.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

PD-Series \| ISO15171-1 Diagnostic Interchange Rated Pressure Chart
Body Size	Steel Coupler/Plug Coupled		Steel Plug Disconnected
Body Size	Max. Working	Burst	Max. Working	Burst
1/8"	6,000 PSI 400 Bar	18,700 PSI 1,300 Bar	6,000 PSI 400 Bar	24,000 PSI 1,600 Bar

PD-Series \| ISO15171-1 Diagnostic Coupler (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
1PDF1	Socket/Female	1/8"	1/8" - 27 Female NPT	Steel	2.13" (54.1mm)	0.98" (24.8mm)	21"
1PDF2	Socket/Female	1/8"	1/4" - 18 Female NPT	Steel	2.13" (54.1mm)	0.98" (24.8mm)	21"

PD-Series \| ISO15171-1 Diagnostic Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Max. OD	Hex
PD1F1	Plug/Male	1/8"	1/8" - 27 Female NPT	Steel	1.88" (47.7mm)	0.76" (19.3mm)	17"
PD1F2	Plug/Male	1/8"	1/4" - 18 Female NPT	Steel	1.88" (47.7mm)	0.76" (19.3mm)	17"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
