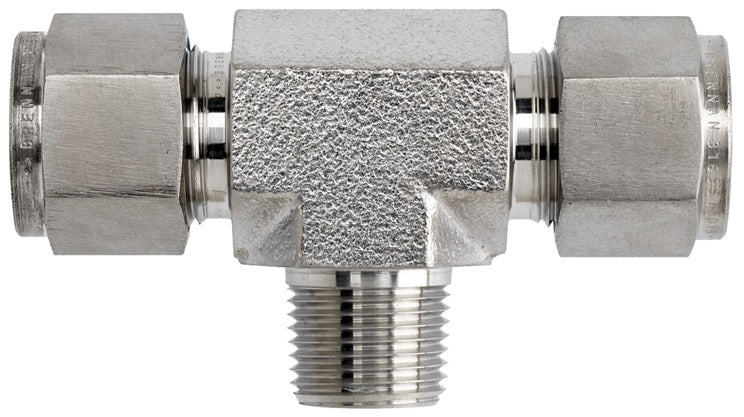

2-DTTM-2 by Dixon Valve | Instrumentation Fitting | Male Branch Tee | 1/8" Male NPT x 1/8" Tube OD | 316 Stainless Steel

2-DTTM-2 by Dixon Valve | Instrumentation Fitting | Male Branch Tee | 1/8" Male NPT x 1/8" Tube OD | 316 Stainless Steel

$43.50 - $43.50
$43.50
$44.64
$44.64 - $44.64
$44.64

Dixon Valve
Instrumentation Fitting | Male Branch Tee | Male NPT x Tube x Tube

Applications include: high pressure, high temperature, nitrogen, helium, flammable gases, hydraulic gases, corrosive media and pneumatic automation.
Specifications for Variant SKU: 2-DTTM-2 Dixon
Series: DTTM Series
Shape (Orientation): Tee
Ends Configuration: 1/8in Tube Compression, 1/8in Male NPT
Material(s): 316 Stainless Steel
Compatibility & Interchange:
  • Fully interchangeable with Swagelok® and Parker A-Lok® fittings.
Features:
  • Double collet (ferrule) swaging action.
  • Two positive seal points.
  • Instrumentation fittings come completely assembled.
Construction:
  • ASTM material construction
  • 316 stainless steel
Specifications:
  • ASTM F 1387 Certified
Safety Notes:
  • Never connect, disconnect or remake a fitting with pressure in the system.
  • Make sure all fittings are properly installed.
  • It is not recommended to go beyond the pressure rating of the tubing. Elongation could occur in the tubing, shrinking the wall thickness and cause potential harm.
  • For proper sealing it is recommended that the tubing and fittings be of like material.
  • Always use proper thread lubricant and sealants on tapered pipe threads.
  • Never bleed a system by loosening a fitting.
Installation:
  • Cut tubing squarely and clean tube end thoroughly to remove burrs.
  • Insert tubing into the assembly making sure the tubing seats firm against the shoulder of the body and the nut is finger tight.
  • Tighten the nut with a wrench 1-1/4 turns, while holding the body with a second wrench.
Suggested Working Pressures (PSI)
Wall Thickness .028 .035 .049 .065 .083 .095 .109
1/4" 4,000 PSI 5,100 PSI 7,500 PSI 10,100 PSI --- --- ---
3/8" --- 3,300 PSI 4,700 PSI 6,600 PSI --- --- ---
1/2" --- 2,600 PSI 3,700 PSI 5,000 PSI 6,600 PSI --- ---
5/8" --- --- 2,900 PSI 3,900 PSI 5,200 PSI 6,000 PSI ---
3/4" --- --- 2,400 PSI 3,200 PSI 4,200 PSI 4,900 PSI 5,700 PSI
316 Stainless Steel
Part Number		 Tube O.D. Male NPT Interchanges
2-DTTM-2 1/8" 1/8"-27 200-3TTM
4-DTTM-4 1/4" 1/4"-18 400-3-4TTM
8-DTTM-6 1/2" 3/8" 810-3TTM
8-DTTM-8 1/2" 1/2" 810-3-8TTM
12-DTTM-8 3/4" 1/2" 1210-3-8TTM
12-DTTM-12 3/4" 3/4" 1210-3TTM
16-DTTM-12 1" 3/4" 1610-3-12TTM
16-DTTM-16 1" 1" 1610-3-16TTM
