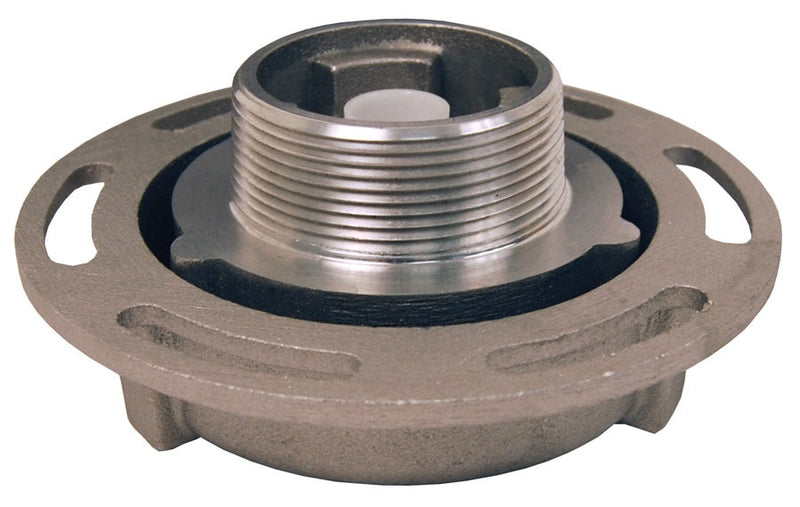

200-PV-9 by Dixon Valve | Automatic Pressure / Vacuum Relief Cap | For Mobile Fuel Tanks | 2" Male NPT | Zinc

200-PV-9 by Dixon Valve | Automatic Pressure / Vacuum Relief Cap | For Mobile Fuel Tanks | 2" Male NPT | Zinc

$86.49 - $86.49
$86.49
$94.17
$94.17 - $94.17
$94.17

Dixon Valve
Tank Truck | Automatic Pressure / Vacuum Relief Cap For Mobile Fuel Tanks
Specifications for Variant SKU: 200-PV-9 Dixon
Brand: Bayco
Shape (Orientation): No Orientation
Ends Configuration: 2in Male NPT
Material(s): Zinc
Features:
  • Pad-lockable to prevent fuel theft and tampering.
Construction:
  • Die cast zinc body.
  • Brass screen.
Use:
  • Normally closed vent stops fuel evaporation and airborne contaminants.
  • Protects tank from pressure or vacuum build-up. Relieve pressure at 2 PSI and vacuum at 0.7 HG at a rate of 20 SCFM.
  • Can be used as a fuel filler cap.
Specifications:
  • Relieves vacuum at .33 Hg and pressure between 7.5 - 9 PSI.
Safety Notes:
  • Not intended for use on mobile tanks. To ensure that the cap can properly vent, the vent cap must be kept free of any debris i.e. dirt, snow, ice, rags etc.
Part Number Male NPT
200-PV-9 2"
