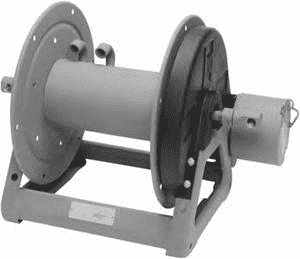

2000 Hannay Electric Powered Rewind Reel (E-2026-17-18) 12 Volt DC

Save $106.30 Save $106.30
Original price $1,062.97
Original price $1,062.97 - Original price $1,062.97
Original price $1,062.97
Current price $956.67
$956.67 - $956.67
Current price $956.67


2000 Electric Powered Rewind Reels To handle dual 1/4" through 1/2" I.D. hose.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for SKU: E2026-17-18 Hannay
Series: 2000 Series
  • Hydraulics
  • Air/Water
  • Spray Painting
  • Two swivel joint inlets and two outlet risers to handle two equal lengths of hose.
  • Chain and sprocket rewind powered by an electric motor.
  • Power rewind reels are not supplied with a brake.
  • Standard inlets 90 deg. ball bearing swivel joints 1/2" female NPT threads.
  • Standard outlets 1/2" female NPT threads.
  • Pressures to 3000 psi (207 bar).
  • Temperatures from +20 deg. F to +400 deg. F (-7 deg. C to +204 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
  • Reels for use with oxygen/acetylene.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1/4" 3/8" 1/2"
O.D. (in) 5/8" 3/4" 7/8" A B E Crank E Power F Crank F Power X
E-2016-17-18 (two) 100' lengths (two) 75' lengths (two) 50' lengths 50 lbs. 13" 8" 18.5" 19" 21" 20" 11.5"
E-2020-17-18 (two) 175' lengths (two) 125' lengths (two) 75' lengths 52 lbs. 17" 12" 18.5" 19" 25" 24" 15.5"
E-2026-17-18 (two) 275' lengths (two) 200' lengths (two) 125' lengths 54 lbs. 23" 18" 18.5" 19" 31" 30" 21.5"
E-2030-17-18 (two) 350' lengths (two) 250' lengths (two) 175' lengths 55 lbs. 27" 22" 18.5" 19" 35" 34" 25.5"
E-2036-17-18 (two) 425' lengths (two) 300' lengths (two) 225' lengths 57 lbs. 33" 28" 18.5" 19" 41" 40" 31.5"
Hannay Reels

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
