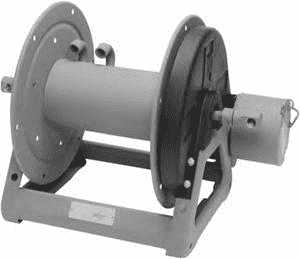

2000 Hannay Manual Rewind Reel (MX-2026-17-18)

MX-2026-17-18 by Hannay | 2000 Series | Manual Rewind Reel

Save $83.47 Save $83.47
$788.14
$788.14 - $788.14
$788.14
$704.67
$704.67 - $704.67
$704.67



2000 Manual Rewind Reels To handle dual 1/4" through 1/2" I.D. hose.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: MX-2026-17-18 Hannay
Series: 2000 Series
Applications:
  • Hydraulics
  • Air/Water
  • Spray Painting
Features:
  • Two swivel joint inlets and two outlet risers to handle two equal lengths of hose.
  • MX Crank rewind reels: pinion brake as standard.
  • Standard inlets 90 deg. ball bearing swivel joints 1/2" female NPT threads.
  • Standard outlets 1/2" female NPT threads.
  • Pressures to 3000 psi (207 bar).
  • Temperatures from +20 deg. F to +400 deg. F (-7 deg. C to +204 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
  • Reels for use with oxygen/acetylene.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1/4" 3/8" 1/2"
O.D. (in) 5/8" 3/4" 7/8" A B E Crank E Power F Crank F Power X
MX-2016-17-18 (two) 100' lengths (two) 75' lengths (two) 50' lengths 32 lbs. 13" 8" 18.5" 19" 21" 20" 11.5"
MX-2020-17-18 (two) 175' lengths (two) 125' lengths (two) 75' lengths 34 lbs. 17" 12" 18.5" 19" 25" 24" 15.5"
MX-2026-17-18 (two) 275' lengths (two) 200' lengths (two) 125' lengths 36 lbs. 23" 18" 18.5" 19" 31" 30" 21.5"
MX-2030-17-18 (two) 350' lengths (two) 250' lengths (two) 175' lengths 37 lbs. 27" 22" 18.5" 19" 35" 34" 25.5"
MX-2036-17-18 (two) 425' lengths (two) 300' lengths (two) 225' lengths 39 lbs. 33" 28" 18.5" 19" 41" 40" 31.5"
