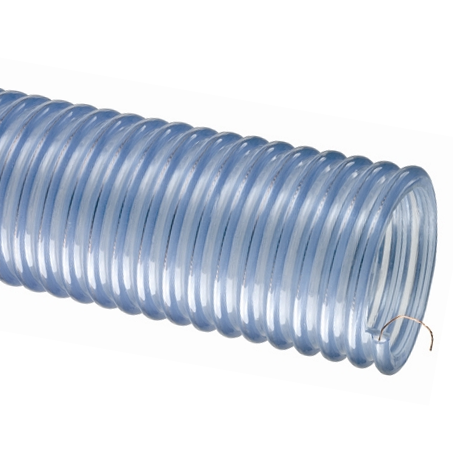

2001-150X60 Tigerflex by Kuriyama | 2001 Series | Heavy Duty Food Grade Polyurethane Lined Material Handling Hose | With Grounding Wire | 1-1/2" Hose ID | 60ft

2001-150X60 Tigerflex by Kuriyama | 2001 Series | Heavy Duty Food Grade Lined Material Handling Hose | With Grounding Wire | 1-1/2" Hose ID | Polyurethane | 60ft Length

Save $69.69 Save $69.69
$696.89
$696.89 - $696.89
$696.89
$627.20
$627.20 - $627.20
$627.20

Kuriyama Tigerflex 2001™ Series Heavy Duty Food Grade Polyurethane Lined Material Handling Hose With Grounding Wire


Package Quantity: 60 FT

Specifications for Variant SKU: 2001-150X60 Kuriyama | 60 |
Brand: Tigerflex
Series: 2001 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 1.50in
Outer Diameter: 1.88in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements, Applicable USDA Standards, RoHS Compliant
Special Properties: Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Application: Food Grade Material Handling, Material Handling, Pharmaceutical Product Transfer, Plastic Processing Equipment, Pneumatic Conveying Equipment SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane Liner
Reinforcement: Rigid PVC Helix and grounding wire Cover: PVC
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications BSE/TSE(02), FDA(03), FDA(04), RoHS(10), USDA(11)
Other Features:
  • Extra Thick Abrasion Resistant Polyurethane Liner - Designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Food Grade Materials - Hose cover complies with applicable FDA(03) requirements. Hose liner complies with applicable FDA(04) requirements. Hose approved by USDA(11) for use in meat and poultry plants.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Convoluted Outer Cover - Provides increased hose flexibility
  • Grounding Wire - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials.
  • Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
2001-150X60 1-1/2" 38.1mm 1.88" 47.8mm 50 PSI 25 PSI Full 28in. Hg 6" 60ft 0.48 lbs
2001-200X60 2" 50.8mm 2.44" 62.0mm 40 PSI 20 PSI Full 28in. Hg 7" 60ft 0.67
2001-250X60 2-1/2" 63.5mm 3.12" 77.2mm 40 PSI 20 PSI Full 28in. Hg 8" 60ft 0.92 lbs
2001-300X60 3" 76.2mm 3.70" 94.1mm 40 PSI 20 PSI Full 28in. Hg 9" 60ft 1.35 lbs
2001-400X60 4" 101.6mm 4.80" 122.0mm 35 PSI 18 PSI Full 28in. Hg 15" 60ft 2.17 lbs
2001-500X60 5" 127.0mm 5.81" 147.6mm 35 PSI 18 PSI 28in. Hg 25in. Hg 23" 60ft 2.77 lbs
2001-600X60 6" 152.4mm 6.93" 176.0mm 30 PSI 15 PSI 28in. Hg 25in. Hg 26" 60ft 3.90 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
