2001-600X60 Tigerflex by Kuriyama | 2001 Series | Heavy Duty Food Grade Polyurethane Lined Material Handling Hose | With Grounding Wire | 6" Hose ID | 60ft

2001-600X60 Tigerflex by Kuriyama | 2001 Series | Heavy Duty Food Grade Lined Material Handling Hose | With Grounding Wire | 6" Hose ID | Polyurethane | 60ft Length

Save $460.71 Save $460.71
$4,607.11
$4,607.11 - $4,607.11
$4,607.11
$4,146.40
$4,146.40 - $4,146.40
$4,146.40

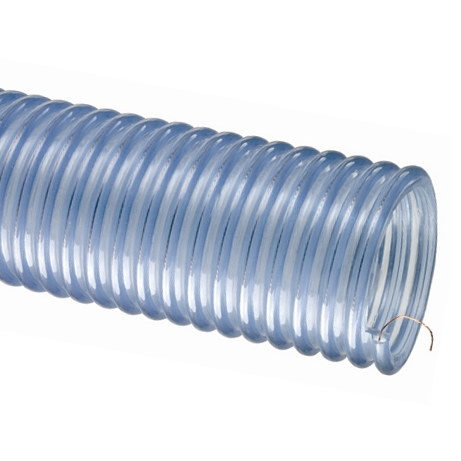

Kuriyama Tigerflex 2001™ Series Heavy Duty Food Grade Polyurethane Lined Material Handling Hose With Grounding Wire


Package Quantity: 60 FT

Specifications for Variant SKU: 2001-600X60 Kuriyama | 60 |
Brand: Tigerflex
Series: 2001 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 6in
Outer Diameter: 6.93in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable FDA Requirements, Applicable USDA Standards, RoHS Compliant
Special Properties: Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Application: Food Grade Material Handling, Material Handling, Pharmaceutical Product Transfer, Plastic Processing Equipment, Pneumatic Conveying Equipment SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane Liner
Reinforcement: Rigid PVC Helix and grounding wire Cover: PVC
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications BSE/TSE(02), FDA(03), FDA(04), RoHS(10), USDA(11)
Other Features:
  • Extra Thick Abrasion Resistant Polyurethane Liner - Designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Food Grade Materials - Hose cover complies with applicable FDA(03) requirements. Hose liner complies with applicable FDA(04) requirements. Hose approved by USDA(11) for use in meat and poultry plants.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Convoluted Outer Cover - Provides increased hose flexibility
  • Grounding Wire - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials.
  • Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
2001-150X60 1-1/2" 38.1mm 1.88" 47.8mm 50 PSI 25 PSI Full 28in. Hg 6" 60ft 0.48 lbs
2001-200X60 2" 50.8mm 2.44" 62.0mm 40 PSI 20 PSI Full 28in. Hg 7" 60ft 0.67
2001-250X60 2-1/2" 63.5mm 3.12" 77.2mm 40 PSI 20 PSI Full 28in. Hg 8" 60ft 0.92 lbs
2001-300X60 3" 76.2mm 3.70" 94.1mm 40 PSI 20 PSI Full 28in. Hg 9" 60ft 1.35 lbs
2001-400X60 4" 101.6mm 4.80" 122.0mm 35 PSI 18 PSI Full 28in. Hg 15" 60ft 2.17 lbs
2001-500X60 5" 127.0mm 5.81" 147.6mm 35 PSI 18 PSI 28in. Hg 25in. Hg 23" 60ft 2.77 lbs
2001-600X60 6" 152.4mm 6.93" 176.0mm 30 PSI 15 PSI 28in. Hg 25in. Hg 26" 60ft 3.90 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fitting or by other means.
