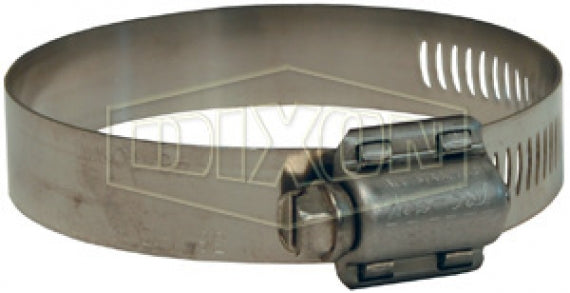

20028 by Dixon Valve | Style 200 | Aero-Seal® Worm Gear Clamp | 9/16" Band Width | Hose OD Range: from 1-5/16" to 2-1/4" | 300 Stainless Steel Band | 410 Stainless Steel Screw | Box of 10

Save $2.33

$21.00

$21.00 - $21.00

$21.00

$18.67

$18.67 - $18.67

$18.67

Dixon Valve
Aero-Seal® Worm Gear Clamps | Style 200

Package Quantity: 10 EA

Quantity

Specifications for Variant SKU: 20028 Dixon \| 10 \|
Brand:	Aero-Seal
Series:	Style 200
Material(s):	300 Stainless Steel
Clamp Width:	0.5625
Minimum Clamp I.D.:	1.3125
Maximum Clamp I.D.:	2.25

Features:
Four-piece construction. Slotted hex head screw design. Heat treated screws have buttress thread type. Band slots designed for strength and smooth action. Saddle interlocks into embossed band to form a true concentric circle. Safety collar or thumb screw available on the style 200-series only.
Materials:
Style 100 Band and housing: 300 Stainless Steel Screw: Plated Carbon Steel Style 200 Band and housing: 300 Stainless Steel Screw: 410 Stainless Steel Style 300 Band and housing: 300 Stainless Steel Screw: 305 Stainless Steel
Note:
Suggested installation torque 30-42 in. lbs.; maximum recommended torque 60 in. lbs. Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp.

Style 100 Part Number	Style 200 Part Number	Style 300 Part Number	Band Width	Hose OD
Style 100 Part Number	Style 200 Part Number	Style 300 Part Number	Band Width	From	To
10006	20006	30006	9/16"	7/16"	25/32"
10008	20008	30008	9/16"	1/2"	29/32"
10010	20010	30010	9/16"	9/16"	1-1/16"
10012	20012	30012	9/16"	11/16"	1-1/4"
10016	20016	30016	9/16"	13/16"	1-1/2"
10020	20020	30020	9/16"	13/16"	1-3/4"
10024	20024	30024	9/16"	1-1/16"	2"
10028	20028	30028	9/16"	1-5/16"	2-1/4"
10032	20032	30032	9/16"	1-9/16"	2-1/2"
10036	20036	30036	9/16"	1-13/16"	2-3/4"
10040	20040	30040	9/16"	2-1/16"	3"
10044	20044	30044	9/16"	2-5/16"	3-1/4"
10048	20048	30048	9/16"	2-9/16"	3-1/2"
10052	20052	30052	9/16"	2-13/16"	3-3/4"
10056	20056	30056	9/16"	3-1/16"	4"
10060	20060	30060	9/16"	3-5/16"	4-1/4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
