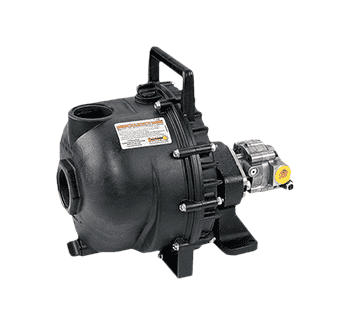

200PHYW Banjo Polypropylene 2" Wet Seal Pump with 12 HP Hydraulic Motor

200PHYW by Banjo | Centrifugal Pumps | 2" Wet Seal Pump with 12 HP Hydraulic Motor | Polypropylene

Save $184.81 Save $184.81
$1,663.25
$1,663.25 - $1,663.25
$1,663.25
$1,478.44
$1,478.44 - $1,478.44
$1,478.44

Banjo Self-Priming Centrifugal Pumps - 2" Polypropylene Pumps with Hydraulic Motors & Replacement Parts
Specifications for Variant SKU: 200PHYW Banjo

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Product Manual: Parts 200PHA & 200PHY: 1-1/2", 2" & 3" Centrifugal Pump Instruction Manual PDF Parts 200PHYW: 2" Cast Iron Wet Seal 201 Series Pump Instruction Manual PDF
Replacement Parts: Replacement Parts for 2" Polypropylene Hydraulic Pumps
Hydraulic Motor Data:
U.S. Gallons/Rev. 0.0025 Cubic Inches/Rev. 0.580
Liters/Rev. 0.0097 Max Hydraulic Pressure 2000 PSI
Min Hydraulic Pressure 200 PSI Inlet Port SAE 10 (7/8-14 UNF-2B)
Outlet Port SAE 10 (7/8-14 UNF-2B) Minimum GPM Required 6 GPM 2400 RPM
Maximum GPM Required 10 GPM 4000 RPM Ideal GPM Required 9 GPM 3600 RPM
Connection Information
Inlet "A" Port Outlet "B" Port
Supplied check valve is to ensure proper rotation of the Banjo pump. Place check valve in outlet port (marked "B") for proper right hand rotation.
Spool Valve Information
Required Outlet Flow Min 6 GPM / Max 10 GPM Required System Pressure Min 600 PSI / Max 3000 PSI
Pump Features:
  • Precision molded construction
  • Lightweight
  • Corrosion resistant
  • Superior design
  • Low maintenance
Gresen® MGG2 Hydraulic Motor Features:
  • Hydraulic fluid capacity Minimum 6 Gallons / Maximum 10 Gallons.
  • 12 H.P. Motor
  • Open or closed system
  • 3600 R.P.M.
Notes:
  • CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump.
  • DO NOT USE WITH FLAMMABLE LIQUIDS.
  • Recommendation: Banjo recommends using the motor spool control valve or a suitable equivalent. The lack of such a valve in this circuit may cause failure to the hydraulic motor.
Part Number Description Horsepower EPDM Repair Kit Number FKM Repair Kit Number EPDM Seal Kit Number FKM Seal Kit Number Hydraulic Motor Seal Kit Number
2" Poly Pumps with Hydraulic Motors
200PHA 2" Poly Pump WITHOUT Hydraulic Motor N/A 12000A 12000AV 12999A 12999AV N/A (Made to Order)
200PHY 2" Poly Pump with 12 HP Hydraulic Motor 12.0 HP 12000A 12000AV 12999A 12999AV HY1003 (Made to Order)
200PHYW 2" Poly Wet Seal Pump with 12 HP Hydraulic Motor 12.0 HP N/A N/A N/A N/A N/A (Made to Order)
Hydraulic Motor Spool Valve
HSV1000 Hydraulic Motor Spool Valve N/A N/A N/A N/A N/A N/A N/A ---
Replacement Parts for 2" Poly Pumps
Item Part Number Description
3 12712A Body Assembly
14 12703A Rear Bracket
20 12702A Volute
Not Shown 12099 7/16"-14 x 1.25" HHCS
N/A 12000A 5 Vane Impeller Repair Kit (Items 2,4,7,8,17,19,21,30, 12099)
N/A 12000AV FKM(viton type) Impeller Repair Kit (Items 2,4,7,8,17,19,21,30, 12099)
N/A 12999A Pump Seal/O-Ring Kit (Items 2,4,7,8,17,19,21,30, 12099)
N/A 12999AV FKM(viton type) Pump Seal/O-Ring Kit (Items 4-7,8,10,18, 23 & 12099)
N/A HY1003 Hydraulic Motor Seal Kit
