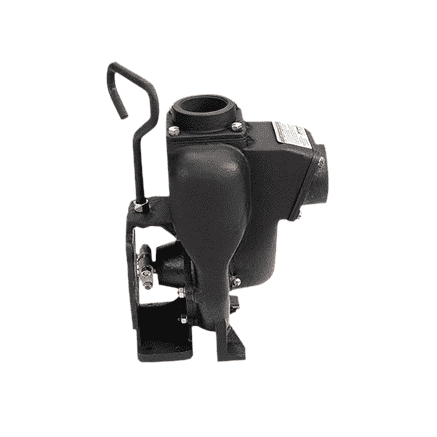

200POICF7/8 Banjo 2" Cast Iron C-Flange Pump with 7/8" Shaft Sleeve

200POICF7/8 by Banjo | Centrifugal Pumps | 2" Cast Iron C-Flange Pump with 7/8" Shaft Sleeve

Save $66.51 Save $66.51
$598.60
$598.60 - $598.60
$598.60
$532.09
$532.09 - $532.09
$532.09
Specifications for Variant SKU: 200POICF7/8 Banjo
Application: Fluids, Agriculture, Industrial
Features:
  • Cast iron construction for rugged dependable service
  • Stainless steel shaft sleeve to protect engine shaft
  • Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber
  • Replaceable inlet and outlet flanges
  • Dynamically balanced impeller
Notes:
  • CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump
  • Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.
  • DO NOT USE WITH FLAMMABLE LIQUIDS
Part Number Description Horsepower
2" Cast Iron Pumps with Gas Engines
200PI-3 2" Cast Iron Pump with 3.5 HP Briggs & Stratton® Engine 3.5 HP (Made to Order)
200PI6PRO 2" Cast Iron Pump with 6.5 HP Briggs & Stratton® Engine Pro Series 6.5 HP ---
200PIH-5 2" Cast Iron Pump with 5.5 HP Honda® Engine 5.5 HP ---
200PIH5E 2" Cast Iron Pump with 5.5 HP Honda® Engine with Electric Start 5.5 HP (Made to Order)
2" Cast Iron Pump Only
200POI 2"" Cast Iron Pump Only with 3/4"" Shaft Sleeve N/A
2" Cast Iron Bearing Pedestal
200PBI 2" Cast Iron Bearing Pedestal with 3/4" Straight Shaft* (Note:*3/4" straight shaft for long coupling to electric motors) N/A (Made to Order)
2" Cast Iron C-Flange Pumps
200POICF5/8 2" Cast Iron C-Flange Pump with 5.8" Shaft Sleeve N/A (Made to Order)
200POICF7/8 2" Cast Iron C-Flange Pump with 7.8" Shaft Sleeve N/A (Made to Order)

* Recommendation for 5/8" Shaft: 56C Frame Size, 3 HP, 3450 RPM, & 5" Max Impeller for close coupling to electric motors. 7/8" Shaft: 145TC Frame Size, 3 HP, 3450 RPM, & 5" Max Impeller for close coupling to electric motors.

Replacement Parts for 2" Cast Iron Pumps
Item Part Number Description Quantity Required
1 17000 Threaded Outlet Flange 1
1 M17000 2" Manifold Outlet Flange 1
2 17002 Threaded Inlet Flange 1
2 M17002 2" Manifold Inlet Flange 1
3 17004 Adapter for Gas Engine 1
3 17046 C-Flange Adapter 1
4 17005 5/8" Sleeve Drive for Electric Motor 1
4 17006* 3/4" Sleeve Drive 1
4 17007 7/8" Sleeve Drive for Electric Motor 1
5 17008* 5" Impeller 1
5 17008-4.1 4.1" Trimmed Impeller 1
6 17010 1/2" Hex Nut 1
7 17011 Wear Plate 1
8 17013 EPDM Gasket 1
9 17016 Check Valve Assembly 1
10 17018 Gasket Adapter 1
11 15022 Handle 1
12 17023 5/8" Clamp for 3/4" Shaft Assembly (Old Style) 1
12 17123 5/8" Clamp for 3/4" Shaft Assembly (Keyed) 1
12 17024 7/8" Clamp for Shaft Assembly 1
13 17026 Pump Housing 1
14 V10118 5/16" Lock Washer 18
15 V10119 5/16" - 18 SS Hex Nut 6
Not Shown 12882R Housing 1
Not Shown 12883R Bearing Pedestal with 3/4" Shaft Only 1
Not Shown 12884 Internal Retaining Clip for Pedestal 1
Not Shown 12883B Bearings 2
16 12882A Complete Pedestal Assembly 1
17 17040 5.16"-24 x 1.00" Cap Screw 4
18 17028 EPDM Seal Assembly 1
18 17035* FKM (viton type) Seal Assembly 1
18 17035SD Severe Duty Seal 1
19 17042 Stud 6
20 17019 5/16"-18 x 3/4" Cap Screw 8
21 17009B 5/8" Impeller Nut 1
22 17130 5/16-18 x 1.00" FHSCS, 18-8 SS 2
23 12777 1/2" Plug 1
24 UV15163 O-Ring 1
Not Shown 17033 Z Rails (Pair) 1
Not Shown 17100 Repair Kit (Consists of items 4*, 5*, 7,10,18*) 1
