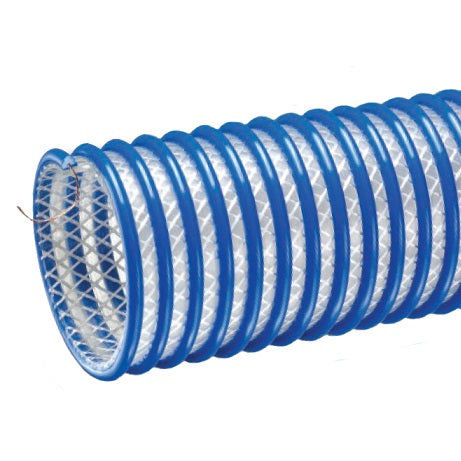

2020-300X50 Kuriyama Tigerflex 2020 Series Heavy Duty Food Grade Polyurethane Fabric Reinforced Material Handling Hose With Grounding Wire - 3" - 50ft

2020-300X50 Tigerflex by Kuriyama | 2020 Series | Heavy Duty Food Grade Fabric Reinforced Material Handling Hose With Grounding Wire | 3" ID | Polyurethane | 50ft Length

Save $482.04

$1,687.14

$1,687.14 - $1,687.14

$1,687.14

$1,205.10

$1,205.10 - $1,205.10

$1,205.10

Kuriyama Tigerflex 2020™ Series Heavy Duty Food Grade Polyurethane Fabric Reinforced Material Handling Hose With Grounding Wire

Package Quantity: 50 FT

Specifications for Variant SKU: 2020-300X50 Kuriyama \| 50 \|
Brand:	Tigerflex
Series:	2020 Series
Hose Color(s):	Blue & Clear/Semi-Clear
Internal Diameter:	3in
Outer Diameter:	3.78in
Tubing Construction:	Polyurethane
Applicable Specs & Approvals:	Applicable FDA Requirements, Applicable USDA Standards, RoHS Compliant
Special Properties:	Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Food Grade Material Handling, Material Handling, Bulk Truck and Railcar Unloading, Suction and Discharge	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Extra Thick Double-Ply Polyurethane
Reinforcement:	Polyester Fabric, Rigid PVC Helix and Grounding Wire	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	BSE/TSE(02), FDA(04), FDA(05), RoHS(10), USDA(11)
Extra Thick Abrasion Resistant Double-Ply Polyurethane Tube - designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses. Food Grade Materials - Hose liner complies with applicable FDA(04) requirements. Hose approved by USDA(11) for use in meat and poultry plants. Fabric Reinforcement - designed with high tensile strength, food grade(05), polyester yarn jacket to handle both suction, and higher pressure discharge applications. Grounding Wire - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials. Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow. "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures. Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to handle. Oil Resistant Polyurethane Tube - Resists most animal and petroleum based oils.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Min. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
2020-300X100	3"	76.2mm	3.78"	96.0mm	70 PSI	35 PSI	Full	28in. Hg	10"	100ft	1.20 lbs
2020-300X50	3"	76.2mm	3.78"	96.0mm	70 PSI	35 PSI	Full	28in. Hg	10"	50ft	1.20 lbs
2020-400X100	4"	101.6mm	4.84"	123.0mm	65 PSI	30 PSI	Full	28in. Hg	12"	100ft	1.60 lbs
2020-400X50	4"	101.6mm	4.84"	123.0mm	65 PSI	30 PSI	Full	28in. Hg	12"	50ft	1.60 lbs
2020-500X50	5"	127.0mm	5.79"	147.0mm	45 PSI	22 PSI	28in. Hg	25in. Hg	14"	50ft	2.45 lbs
2020-600X50	6"	152.4mm	6.93"	176.0mm	40 PSI	22 PSI	28in. Hg	25in. Hg	16"	50ft	2.86 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fi tting or by other means.
