2020-4-4S Aeroquip by Danfoss | Male 37° JIC Flare Cross Adapter | -04 Male 37° JIC Flare x -04 Male 37° JIC Flare x -04 Male 37° JIC Flare x -04 Male 37° JIC Flare | Steel
2020-4-4S Aeroquip by Danfoss | Male 37° JIC Flare Cross Adapter | -04 Male 37° JIC Flare x -04 Male 37° JIC Flare x -04 Male 37° JIC Flare x -04 Male 37° JIC Flare | Steel
2020-4-4S Aeroquip by Danfoss | Male 37° JIC Flare Cross Adapter | -04 Male 37° JIC Flare x -04 Male 37° JIC Flare x -04 Male 37° JIC Flare x -04 Male 37° JIC Flare | Steel
2020-4-4S Aeroquip by Danfoss | Male 37° JIC Flare Cross Adapter | -04 Male 37° JIC Flare x -04 Male 37° JIC Flare x -04 Male 37° JIC Flare x -04 Male 37° JIC Flare | Steel

2020-4-4S Aeroquip by Danfoss | Male 37° JIC Flare Cross Adapter | -04 Male 37° JIC Flare x -04 Male 37° JIC Flare x -04 Male 37° JIC Flare x -04 Male 37° JIC Flare | Steel

$17.65 - $17.65
$17.65
$17.65 - $17.65
$17.65

Aeroquip® by Danfoss

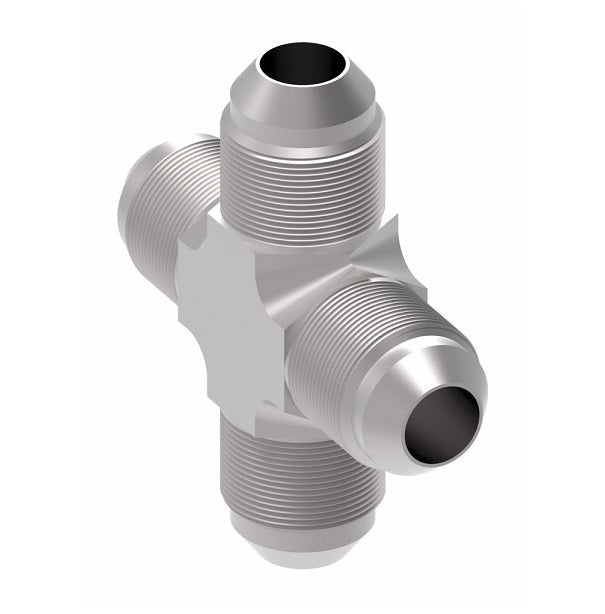

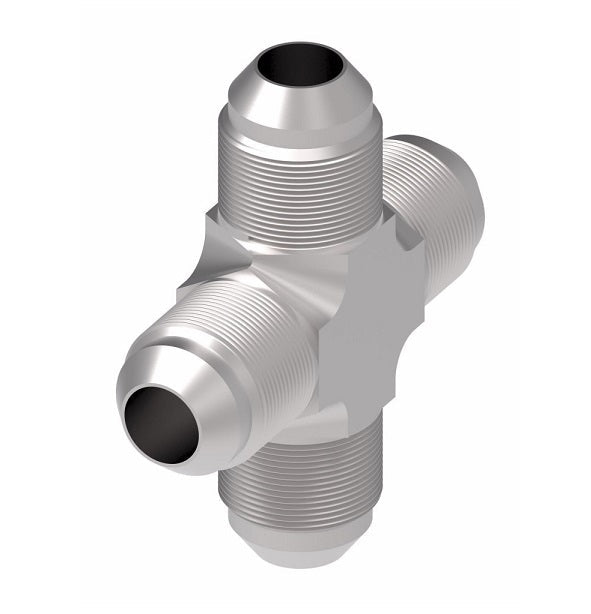

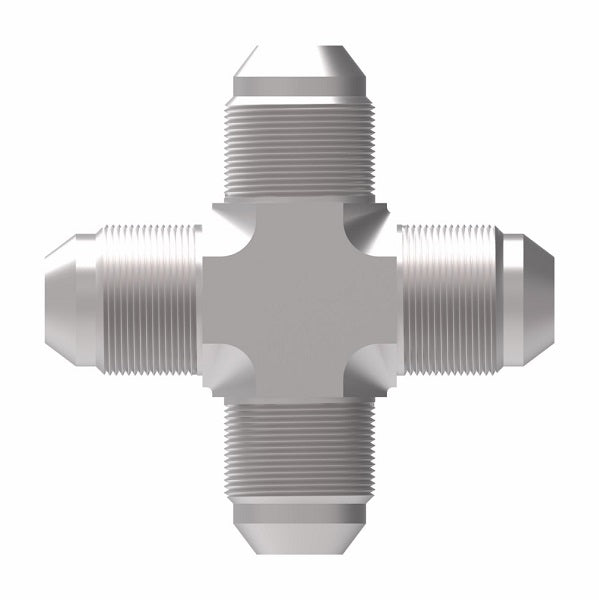

Male 37° JIC Flare Cross Adapter
Male 37° JIC Flare x Male 37° JIC Flare x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2020-4-4S Danfoss
Shape (Orientation): Cross
Ends Configuration: 1/4in Male JIC, 1/4in Male JIC, 1/4in Male JIC, 1/4in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070501
Part Number
Steel		 Tube O.D. Thread T A B
2020-4-4S 0.25" 7/16-20 0.89" 0.89"
2020-6-6S 0.38" 9/16-18 1.06" 1.06"
2020-8-8S 0.50" 3/4-16 1.25" 1.25"
2020-12-12S 0.75" 1-1/16-12 1.66" 1.74"
2020-16-16S 1.00" 1-5/16-12 1.81" 1.96"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
