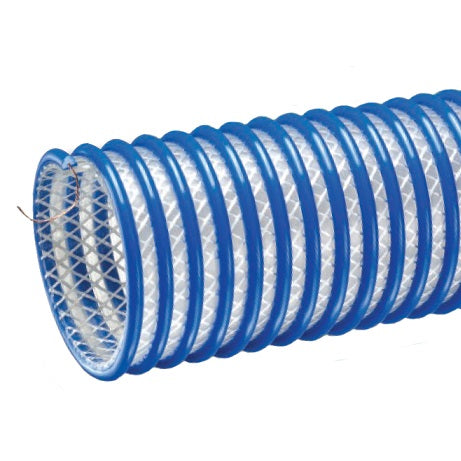

2020-500X50 Kuriyama Tigerflex 2020 Series Heavy Duty Food Grade Polyurethane Fabric Reinforced Material Handling Hose With Grounding Wire - 5" - 50ft

2020-500X50 Tigerflex by Kuriyama | 2020 Series | Heavy Duty Food Grade Fabric Reinforced Material Handling Hose With Grounding Wire | 5" ID | Polyurethane | 50ft Length

Save $1,169.52 Save $1,169.52
$4,093.32
$4,093.32 - $4,093.32
$4,093.32
$2,923.80
$2,923.80 - $2,923.80
$2,923.80

Kuriyama Tigerflex 2020™ Series Heavy Duty Food Grade Polyurethane Fabric Reinforced Material Handling Hose With Grounding Wire


Package Quantity: 50 FT

Specifications for Variant SKU: 2020-500X50 Kuriyama | 50 |
Brand: Tigerflex
Series: 2020 Series
Hose Color(s): Blue & Clear/Semi-Clear
Internal Diameter: 5in
Outer Diameter: 5.79in
Tubing Construction: Polyurethane
Applicable Specs & Approvals: Applicable FDA Requirements, Applicable USDA Standards, RoHS Compliant
Special Properties: Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Application: Food Grade Material Handling, Material Handling, Bulk Truck and Railcar Unloading, Suction and Discharge SAE Rating: N/A
Other Ratings: N/A Tube: Extra Thick Double-Ply Polyurethane
Reinforcement: Polyester Fabric, Rigid PVC Helix and Grounding Wire Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications BSE/TSE(02), FDA(04), FDA(05), RoHS(10), USDA(11)
Other Features:
  • Extra Thick Abrasion Resistant Double-Ply Polyurethane Tube - designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Food Grade Materials - Hose liner complies with applicable FDA(04) requirements. Hose approved by USDA(11) for use in meat and poultry plants.
  • Fabric Reinforcement - designed with high tensile strength, food grade(05), polyester yarn jacket to handle both suction, and higher pressure discharge applications.
  • Grounding Wire - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to handle.
  • Oil Resistant Polyurethane Tube - Resists most animal and petroleum based oils.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
2020-300X100 3" 76.2mm 3.78" 96.0mm 70 PSI 35 PSI Full 28in. Hg 10" 100ft 1.20 lbs
2020-300X50 3" 76.2mm 3.78" 96.0mm 70 PSI 35 PSI Full 28in. Hg 10" 50ft 1.20 lbs
2020-400X100 4" 101.6mm 4.84" 123.0mm 65 PSI 30 PSI Full 28in. Hg 12" 100ft 1.60 lbs
2020-400X50 4" 101.6mm 4.84" 123.0mm 65 PSI 30 PSI Full 28in. Hg 12" 50ft 1.60 lbs
2020-500X50 5" 127.0mm 5.79" 147.0mm 45 PSI 22 PSI 28in. Hg 25in. Hg 14" 50ft 2.45 lbs
2020-600X50 6" 152.4mm 6.93" 176.0mm 40 PSI 22 PSI 28in. Hg 25in. Hg 16" 50ft 2.86 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fi tting or by other means.
