2020-600X50 Kuriyama Tigerflex 2020 Series Heavy Duty Food Grade Polyurethane Fabric Reinforced Material Handling Hose With Grounding Wire - 6" - 50ft

2020-600X50 Tigerflex by Kuriyama | 2020 Series | Heavy Duty Food Grade Fabric Reinforced Material Handling Hose With Grounding Wire | 6" ID | Polyurethane | 50ft Length

Save $383.93 Save $383.93
$3,839.26
$3,839.26 - $3,839.26
$3,839.26
$3,455.33
$3,455.33 - $3,455.33
$3,455.33

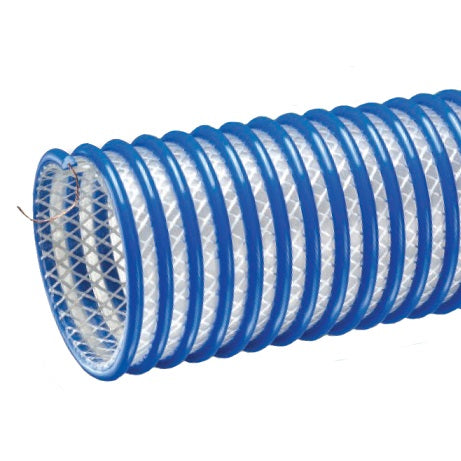

Kuriyama Tigerflex 2020™ Series Heavy Duty Food Grade Polyurethane Fabric Reinforced Material Handling Hose With Grounding Wire


Package Quantity: 50 FT

Specifications for Variant SKU: 2020-600X50 Kuriyama | 50 |
Brand: Tigerflex
Series: 2020 Series
Hose Color(s): Blue & Clear/Semi-Clear
Internal Diameter: 6in
Outer Diameter: 6.93in
Tubing Construction: Polyurethane
Applicable Specs & Approvals: Applicable FDA Requirements, Applicable USDA Standards, RoHS Compliant
Special Properties: Ground Wire in Hose, Outer Helix Protection

SPECIFICATIONS

Application: Food Grade Material Handling, Material Handling, Bulk Truck and Railcar Unloading, Suction and Discharge SAE Rating: N/A
Other Ratings: N/A Tube: Extra Thick Double-Ply Polyurethane
Reinforcement: Polyester Fabric, Rigid PVC Helix and Grounding Wire Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications BSE/TSE(02), FDA(04), FDA(05), RoHS(10), USDA(11)
Other Features:
  • Extra Thick Abrasion Resistant Double-Ply Polyurethane Tube - designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses.
  • Food Grade Materials - Hose liner complies with applicable FDA(04) requirements. Hose approved by USDA(11) for use in meat and poultry plants.
  • Fabric Reinforcement - designed with high tensile strength, food grade(05), polyester yarn jacket to handle both suction, and higher pressure discharge applications.
  • Grounding Wire - Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It's embedded within the rigid helix to prevent contamination of transferred materials.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to handle.
  • Oil Resistant Polyurethane Tube - Resists most animal and petroleum based oils.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
2020-300X100 3" 76.2mm 3.78" 96.0mm 70 PSI 35 PSI Full 28in. Hg 10" 100ft 1.20 lbs
2020-300X50 3" 76.2mm 3.78" 96.0mm 70 PSI 35 PSI Full 28in. Hg 10" 50ft 1.20 lbs
2020-300X20 3" 76.2mm 3.78" 96.0mm 70 PSI 35 PSI Full 28in. Hg 10" 20ft 1.20 lbs
2020-400X100 4" 101.6mm 4.84" 123.0mm 65 PSI 30 PSI Full 28in. Hg 12" 100ft 1.60 lbs
2020-400X50 4" 101.6mm 4.84" 123.0mm 65 PSI 30 PSI Full 28in. Hg 12" 50ft 1.60 lbs
2020-400X20 4" 101.6mm 4.84" 123.0mm 65 PSI 30 PSI Full 28in. Hg 12" 20ft 1.60 lbs
2020-400X15 4" 101.6mm 4.84" 123.0mm 65 PSI 30 PSI Full 28in. Hg 12" 15ft 1.60 lbs
2020-400X30 4" 101.6mm 4.84" 123.0mm 65 PSI 30 PSI Full 28in. Hg 12" 30ft 1.60 lbs
2020-500X50 5" 127.0mm 5.79" 147.0mm 45 PSI 22 PSI 28in. Hg 25in. Hg 14" 50ft 2.45 lbs
2020-500X25 5" 127.0mm 5.79" 147.0mm 45 PSI 22 PSI 28in. Hg 25in. Hg 14" 25ft 2.45 lbs
2020-500X20 5" 127.0mm 5.79" 147.0mm 45 PSI 22 PSI 28in. Hg 25in. Hg 14" 20ft 2.45 lbs
2020-500X15 5" 127.0mm 5.79" 147.0mm 45 PSI 22 PSI 28in. Hg 25in. Hg 14" 15ft 2.45 lbs
2020-500X30 5" 127.0mm 5.79" 147.0mm 45 PSI 22 PSI 28in. Hg 25in. Hg 14" 30ft 2.45 lbs
2020-500X35 5" 127.0mm 5.79" 147.0mm 45 PSI 22 PSI 28in. Hg 25in. Hg 14" 35ft 2.45 lbs
2020-600X50 6" 152.4mm 6.93" 176.0mm 40 PSI 22 PSI 28in. Hg 25in. Hg 16" 50ft 2.86 lbs
2020-600X25 6" 152.4mm 6.93" 176.0mm 40 PSI 22 PSI 28in. Hg 25in. Hg 16" 25ft 2.86 lbs
2020-600X20 6" 152.4mm 6.93" 176.0mm 40 PSI 22 PSI 28in. Hg 25in. Hg 16" 20ft 2.86 lbs
2020-600X10 6" 152.4mm 6.93" 176.0mm 40 PSI 22 PSI 28in. Hg 25in. Hg 16" 10ft 2.86 lbs
2020-600X100 6" 152.4mm 6.93" 176.0mm 40 PSI 22 PSI 28in. Hg 25in. Hg 16" 100ft 2.86 lbs
2020-600X11 6" 152.4mm 6.93" 176.0mm 40 PSI 22 PSI 28in. Hg 25in. Hg 16" 11ft 2.86 lbs
2020-600X30 6" 152.4mm 6.93" 176.0mm 40 PSI 22 PSI 28in. Hg 25in. Hg 16" 30ft 2.86 lbs
2020-600X40 6" 152.4mm 6.93" 176.0mm 40 PSI 22 PSI 28in. Hg 25in. Hg 16" 40ft 2.86 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fi tting or by other means.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
