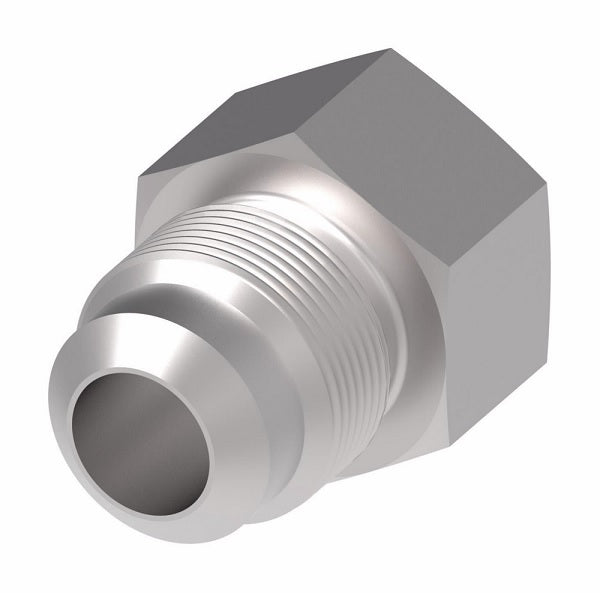

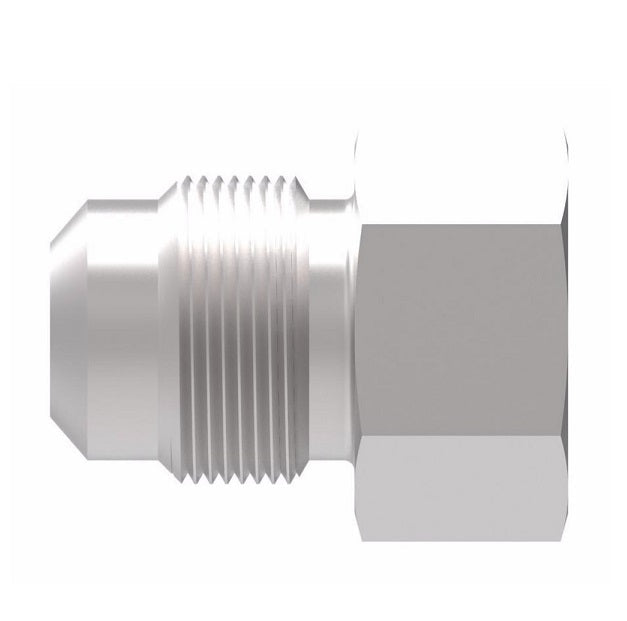

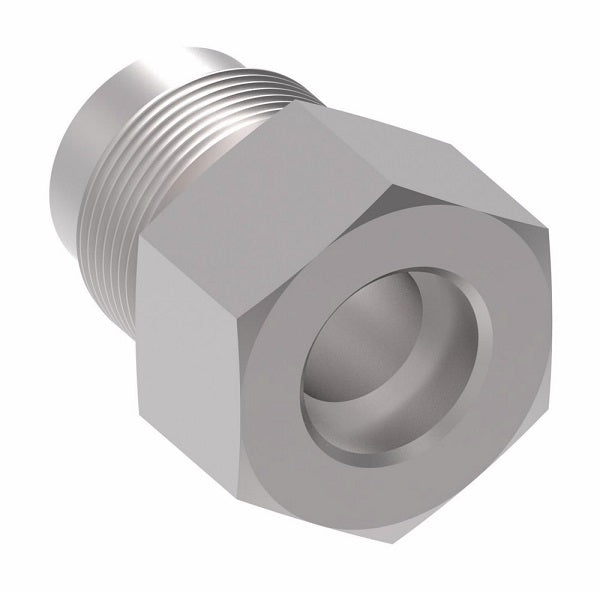

202232-1/4-8S Aeroquip by Danfoss | Weld Port/37° JIC Flare Adapter | 1/4" IPS Size x -08 Male 37° JIC Flare | Steel

202232-1-4-8S Aeroquip by Danfoss | Weld Port/37° JIC Flare Adapter | 1/4" IPS Size x -08 Male 37° JIC Flare | Steel

Name: 202232-1-4-8S Aeroquip by Danfoss | Weld Port/37° JIC Flare Adapter | 1/4" IPS Size x -08 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 202232-1-4-8S Danfoss
Price: 195.43 USD
Availability: InStock

$195.43 - $195.43

$195.43

$195.43 - $195.43

$195.43

Aeroquip® by Danfoss
Weld Port/37° JIC Flare Adapter
Weld Port x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 202232-1-4-8S Danfoss
Shape (Orientation):	Straight
Material(s):	Steel


Steel Part Number	IPS Size	Thread T	A	B	C
202232-1/4-8S	0.25	3/4-16	1.20"	0.56"	0.38"
202232-1/2-12S	0.50	1-1/16-12	1.54"	0.86"	0.50"
202232-1-20S	1.00	1-5/8-12	1.81"	1.34"	0.63"
